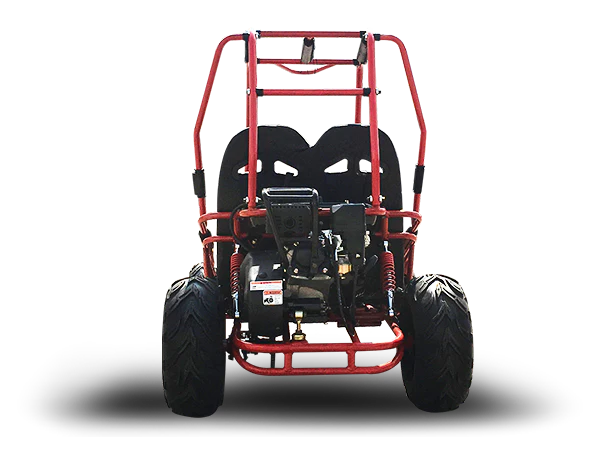

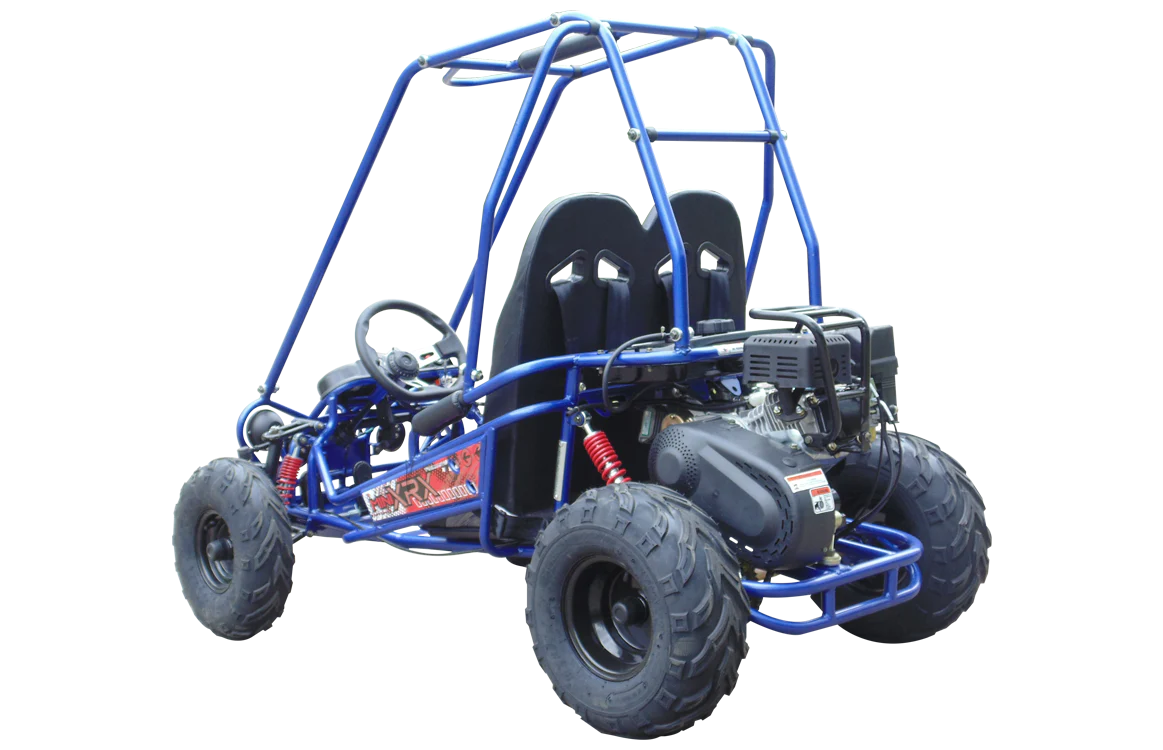

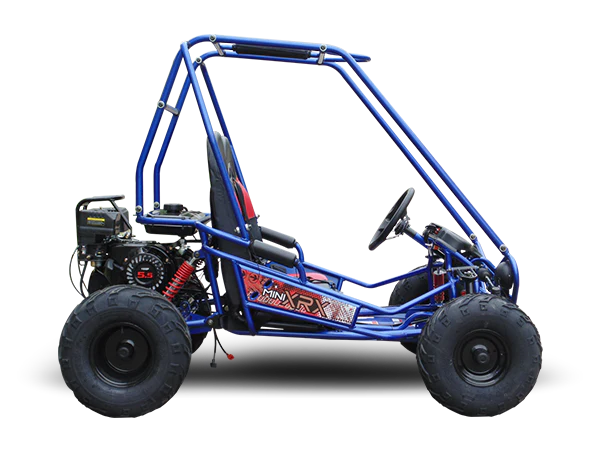

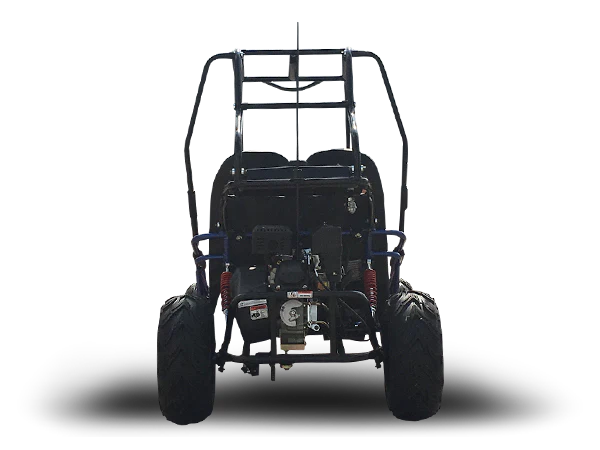

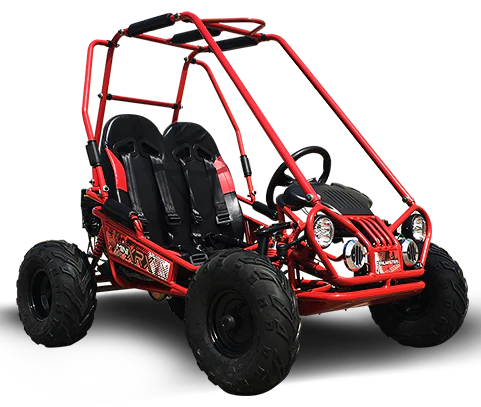

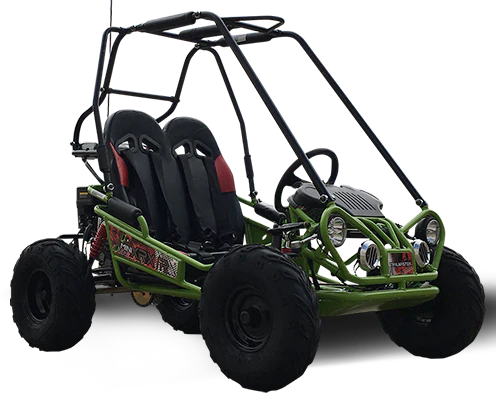

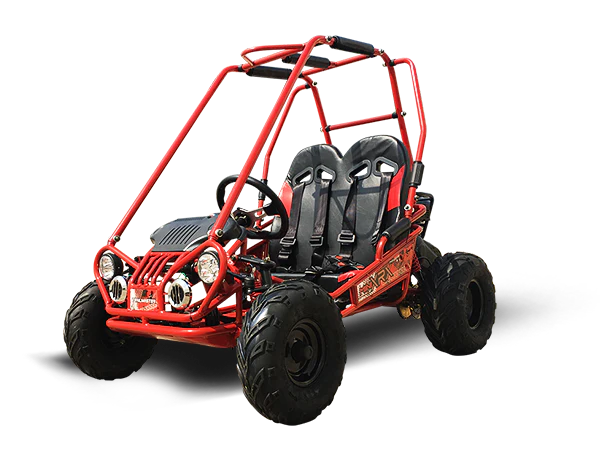

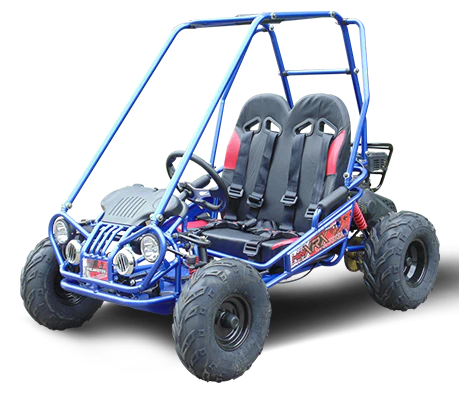

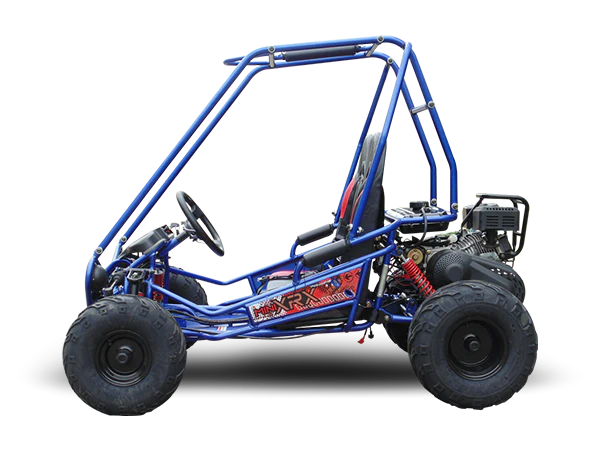

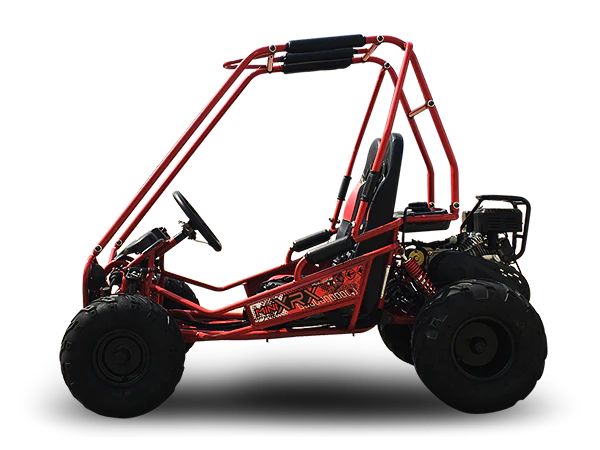

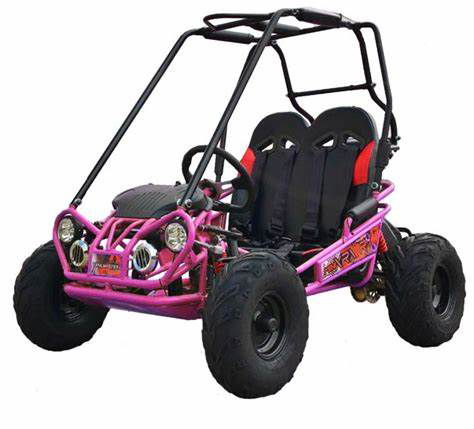

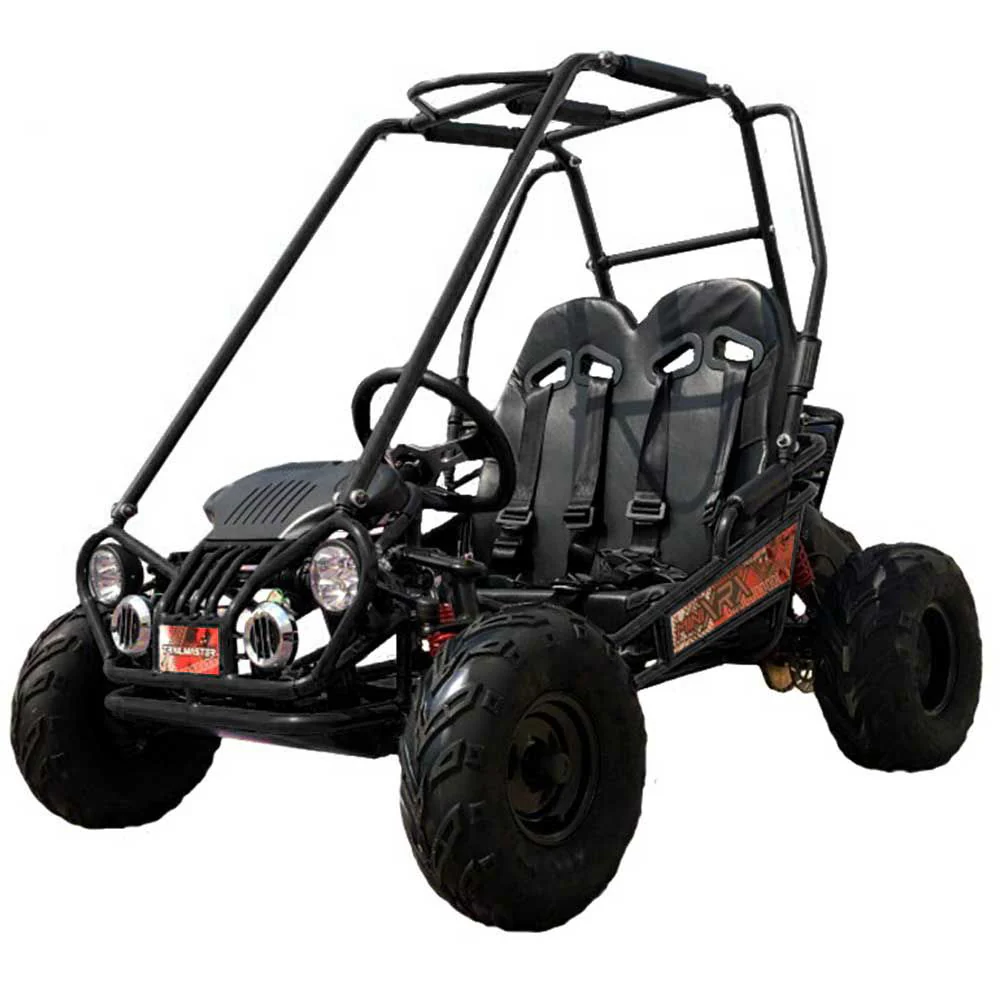

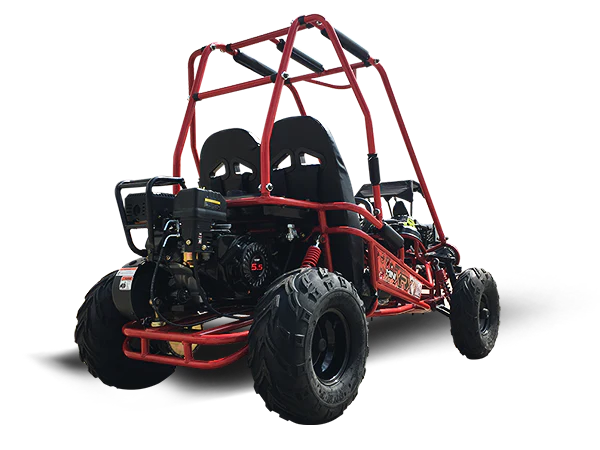

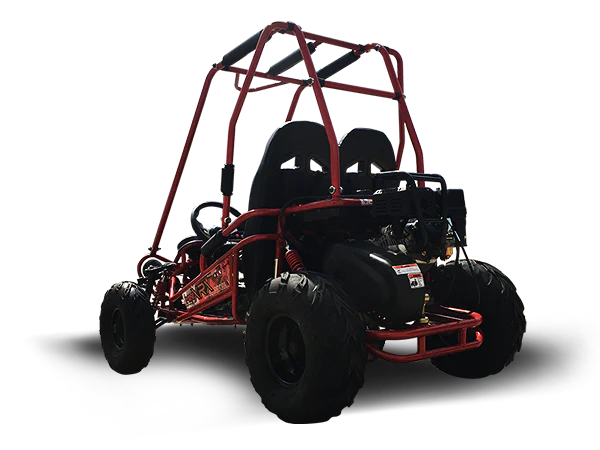

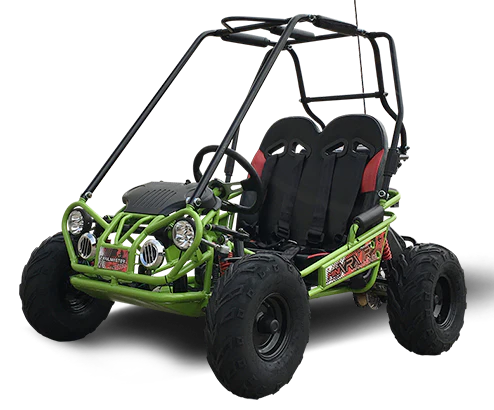

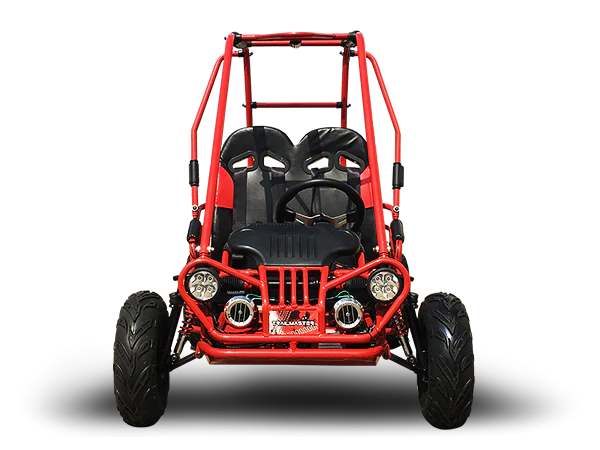

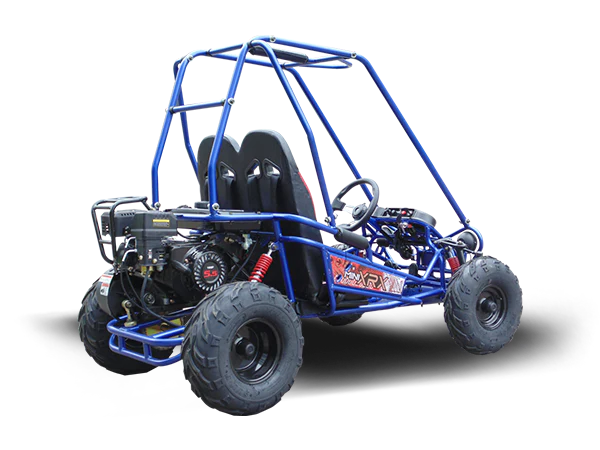

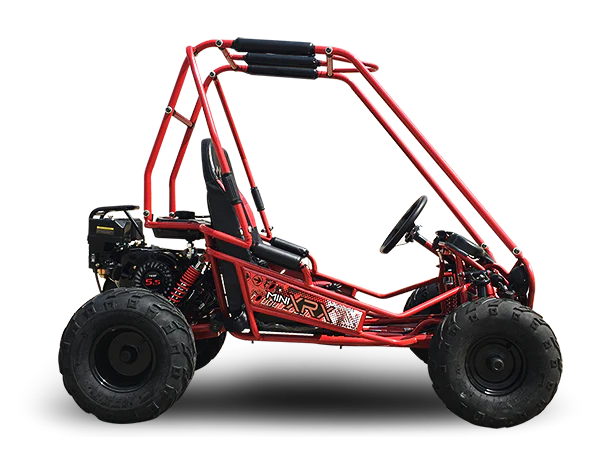

TrailMaster MINI XRX+ Kids GoKart, 5.5hp Gas Engine with Electric Start, Remote Start/Kill, Ages 4-9

The TrailMaster MINI XRX+ Kids GoKart is designed for both safety and performance. It provides 5.5hp in its gas engine with both electric and remote start/kill, as well as a design similar to the larger TrailMaster XRS to provide a cool look. An ideal entry-level go-kart.

The MINI XRX+ Kids GoKart features a 163cc, 5.5hp engine with Electric start and pull start backup, offering your children a safe and easy-to-use go-karting experience. Featuring two-wheel drive, live axle and full suspension front and rear, the go-kart won't exceed 12 mph, while the adjustable pedal seat, safety seatbelts and padded upper brush guards and side railing ensure optimum safety and security.

The MINI XRX+ Kids GoKart provides lasting fun with its 5.5hp Gas Engine and electric start. The extra layer of safety comes from the two remote controller start/stop fobs that allow parents to shut down the go-kart from up to 100 yards away. This go-kart includes additional features such as a speed governor that can slow it down to about 4mph, LED headlights, and a horn to enhance the experience.

Key Features

• Powerful and reliable 4 stroke 5.5HP OHVengine
• Electric start with pull start backup, canstart without a battery
• Rack and pinion steering wheel
• Two wheel drive, live axle
• Fully suspension front and rear
• Sports seat with safety seatbelt
• Adjustable pedal
• Speed governor
• LED headlights and horn
• Remote shutoff control fob

Specifications

Engine Information

• Engine type: 4-stroke, single cylinder,air cooled / 12.4 mph
• Displacement: 163cc
• Max HP: 5.5hp/3600rpm
• Max torque: 8 lb ft/3600rpm
• Bore x stroke: 2.6 x 1.8 inches
• Climbing ability: 12 degrees
• Ignition: C.D.I
• Starting system: Electric Start withPull Start Backup
• Battery: 12V 9Ah
• Carburetor brand: JF (RX)
• Engine oil: SAE 15W-40

General Information

• Clutch: Automatic
• Driveline / Driving wheel: Chain /Dual wheel drive
• Suspension, F / R: Dual A-arm /Double Oil Damped Shock
• Brakes, F / R: No / Disc
• Tires, F / R: 4.10-6 / 13 x 5-6
• Fuel capacity: 1.2 gal
• Weight, G.W. / N.W.: 209 / 176 lbs
• Max load: 400 lbs

Dimensions

• Wheelbase:41.7 inches
• OA L x W x H:58.5x36x43 inches
• Height to seat: 7.5 inches
• Min ground clearance: 3.5 inches

Download Product Brochure

Support

Shipping: Free

Assembly: in the crate, or mostly assembled

Owner Guides: download

Parts: factory replacement parts

Warranty: 30/90 parts
