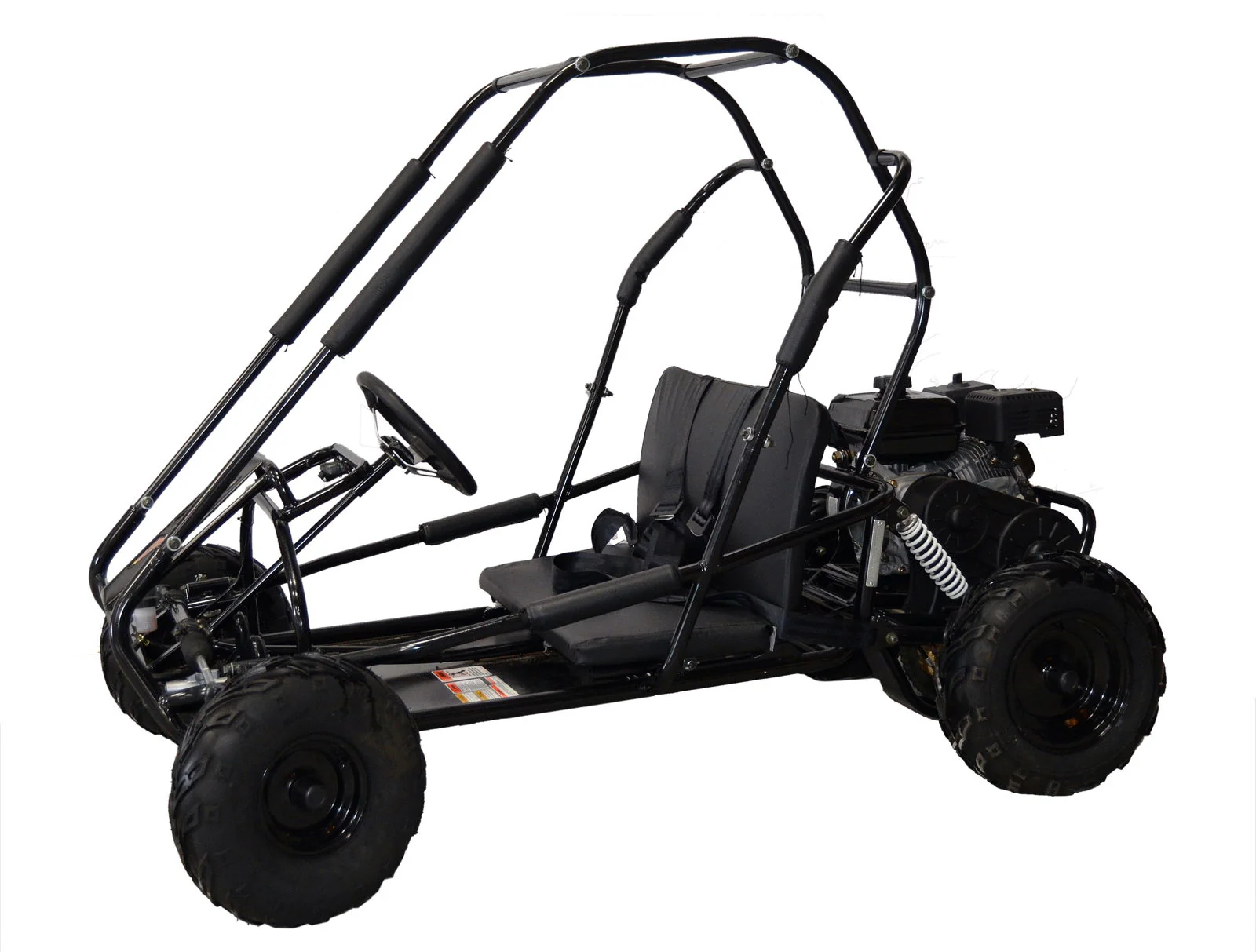

TrailMaster MID-Size XRS Go Kart 7.5hp, Pull Start, Kids Ages 7-12 (Number one Gokart Nationwide)

The TrailMaster MID XRS Go Kart is designed for beginners, offering low maintenance, reliable performance and enjoyable riding.

Featuring a strong frame, double oil damped shocks, hydraulic brakes, two-wheel drive and a 7.5hp engine, it reaches speeds of up to 35 MPH and a 12-degree climb range for navigating most trails.

A simple design and improved turning radius provide added flexibility and protection from overhead brush.

Key Features

• 4-stroke 7.5HP OHV engine

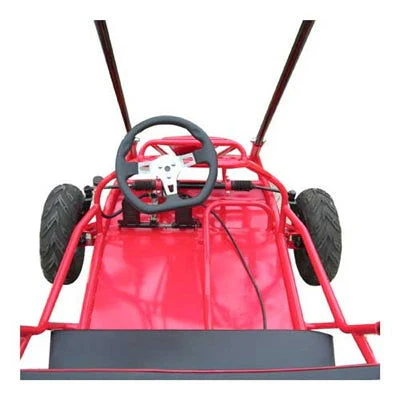

• Rack and pinion steering
• Two-wheel drive, live axle
• Full suspension front and rear

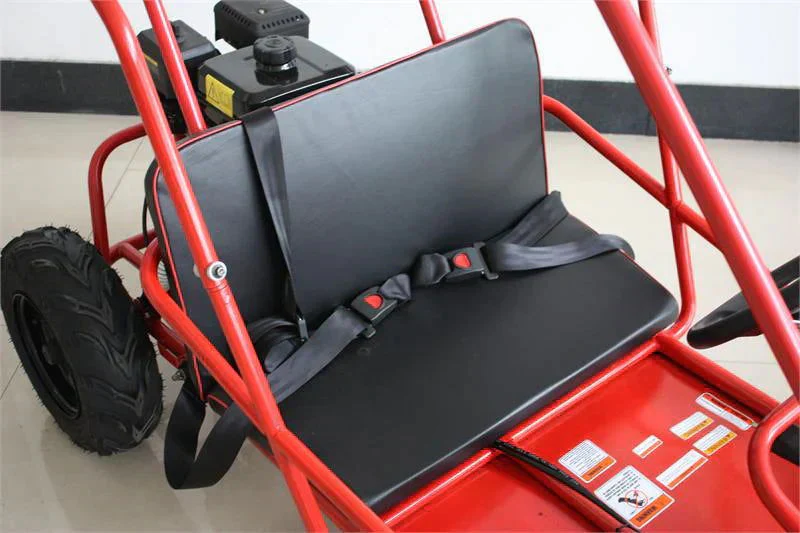

• Safety belts

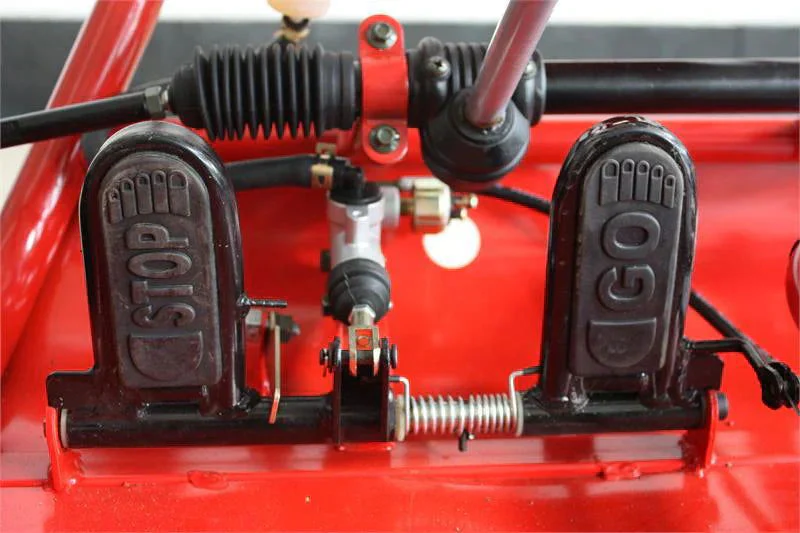

• Adjustable pedals
• Speed governor

Specifications

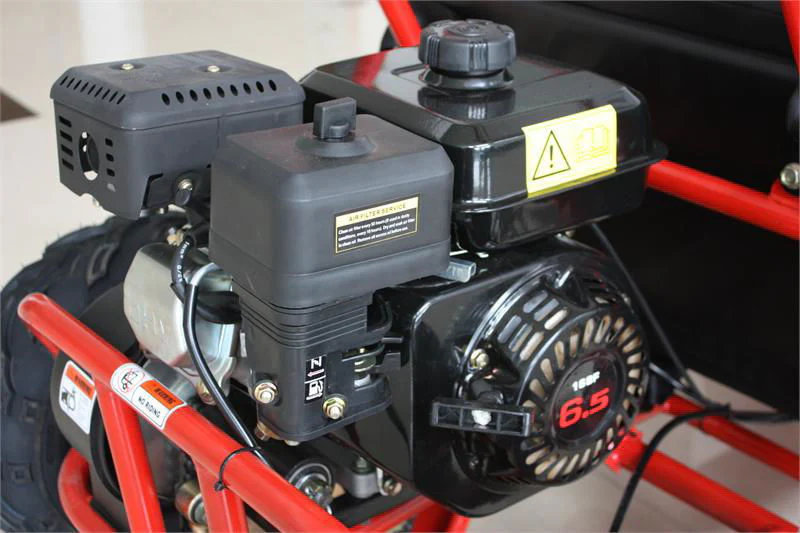

Engine Information

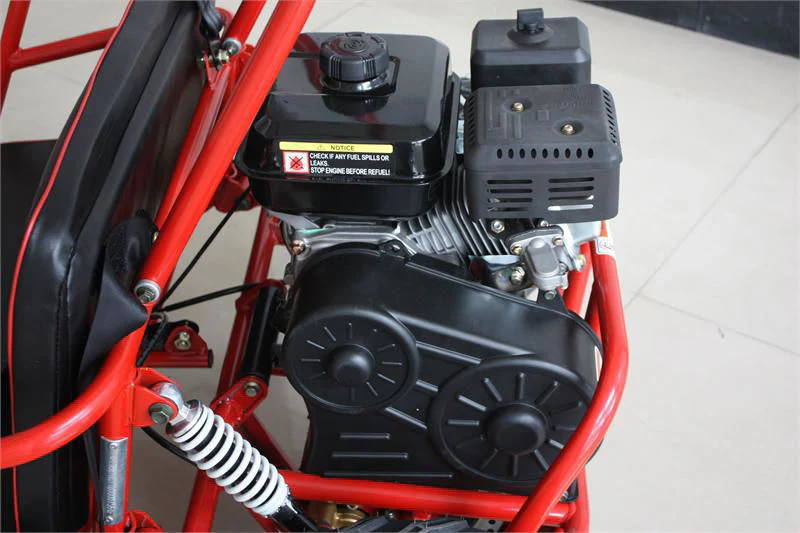

• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 200cc
• Max HP: 7.5hp/3600rpm
• Max torque: 9.6 lb ft/2500rpm
• Bore x stroke: 2.6 x 2.1 inches
• Max speed: 35mph
• Climbing ability: 12 degrees
• Ignition: C.D.I
• Starting system: Manual Pull Start
• Carburetor brand: JF (RX)
• Engine oil: SAE 10W-40

General Information

• Clutch: Automatic CVT
• Driveline / Driving wheel: Chain /Dual wheel drive
• Suspension, F / R: Double Oil Damped Shock
• Brakes, Rear Hydraulic brake, Disc
• Tires, F / R: 145/70-6 / 16x6-8
• Fuel capacity: 1 gal
• Weight, G.W. / N.W.: 386 / 330 lbs.
• Max load: 400 lbs.

Dimension Information

• Wheelbase: 48.4 inches
• OA L x W x H: 67x43.3x51.2 inches
• Height to seat: 10.2 inches
• Min ground clearance: 2.8 inches
• Pedal to seat back distance: 31.5 to34
