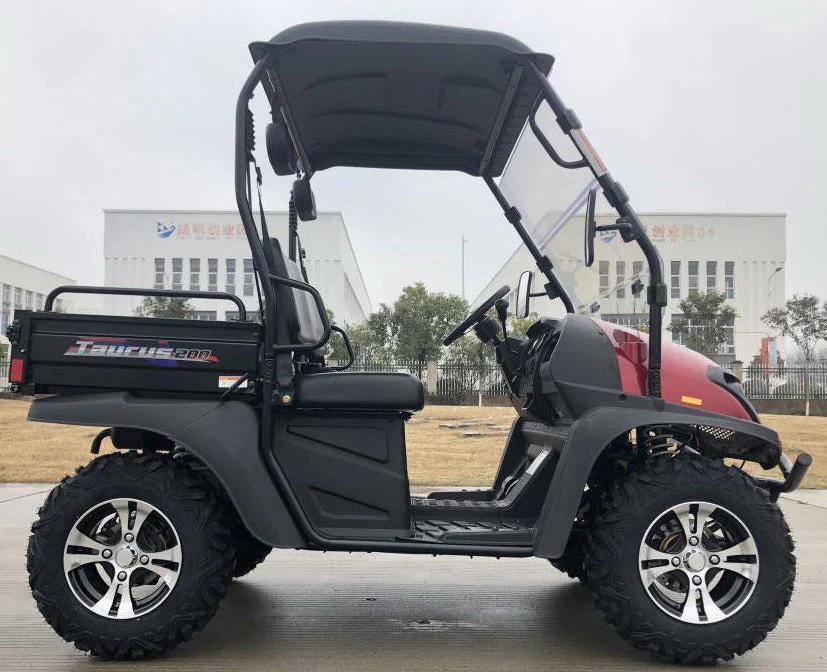

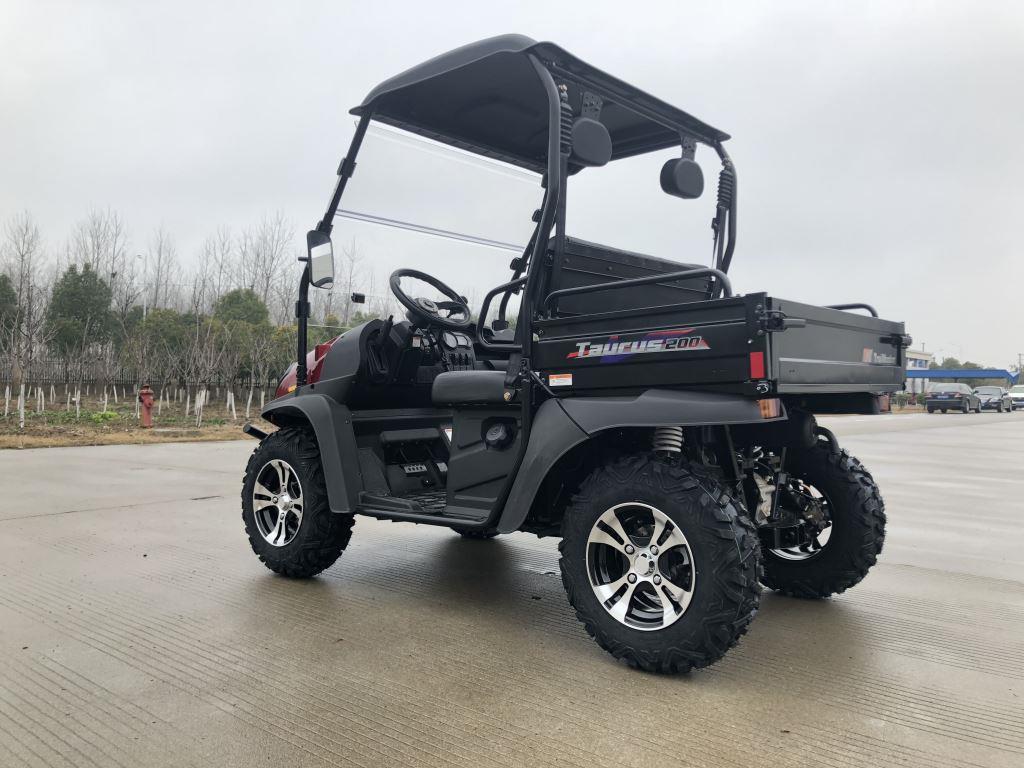

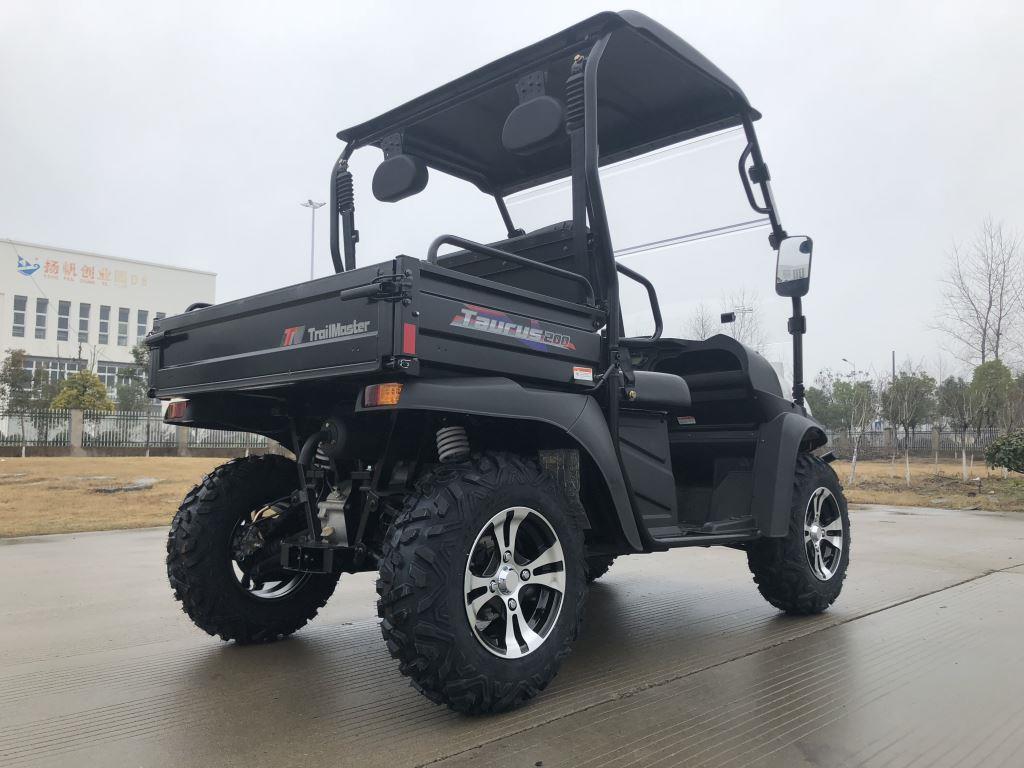

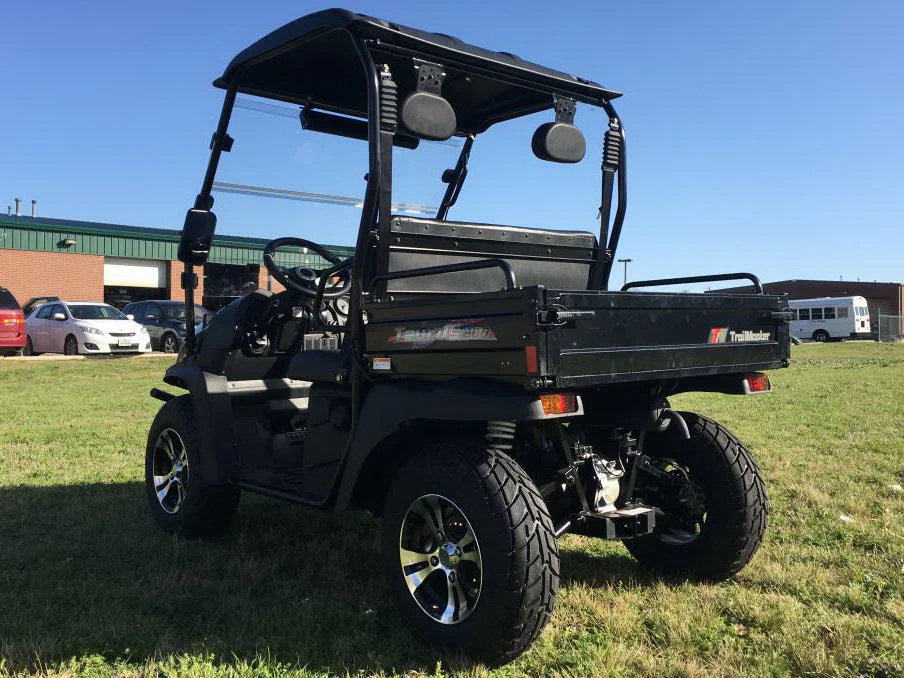

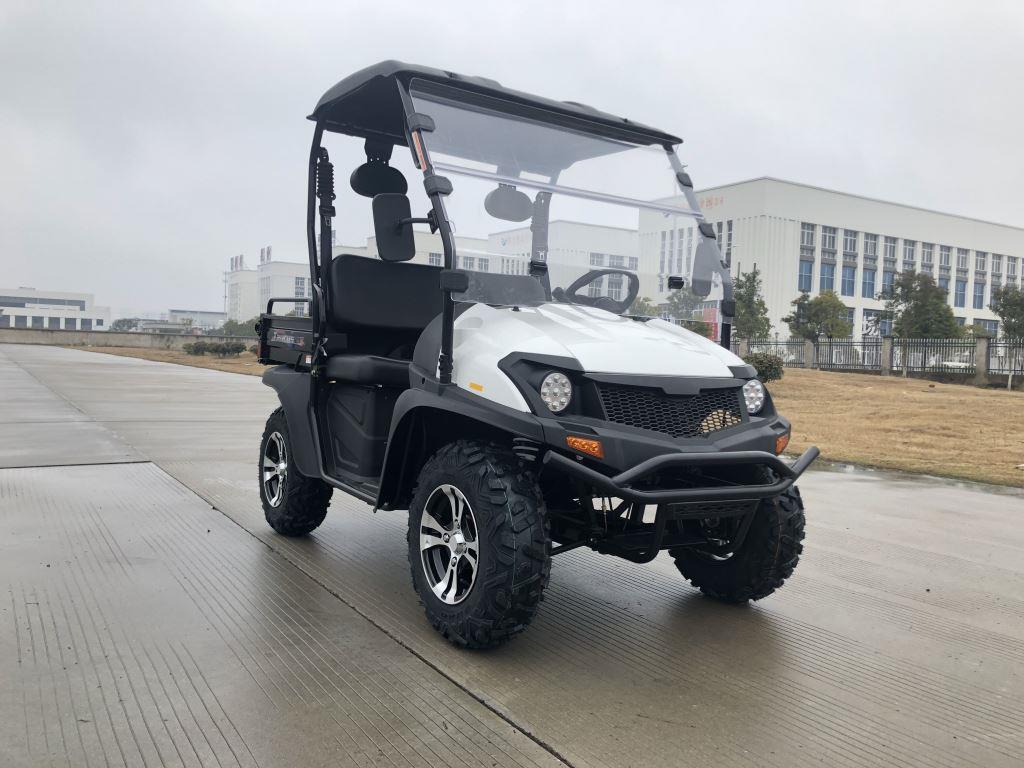

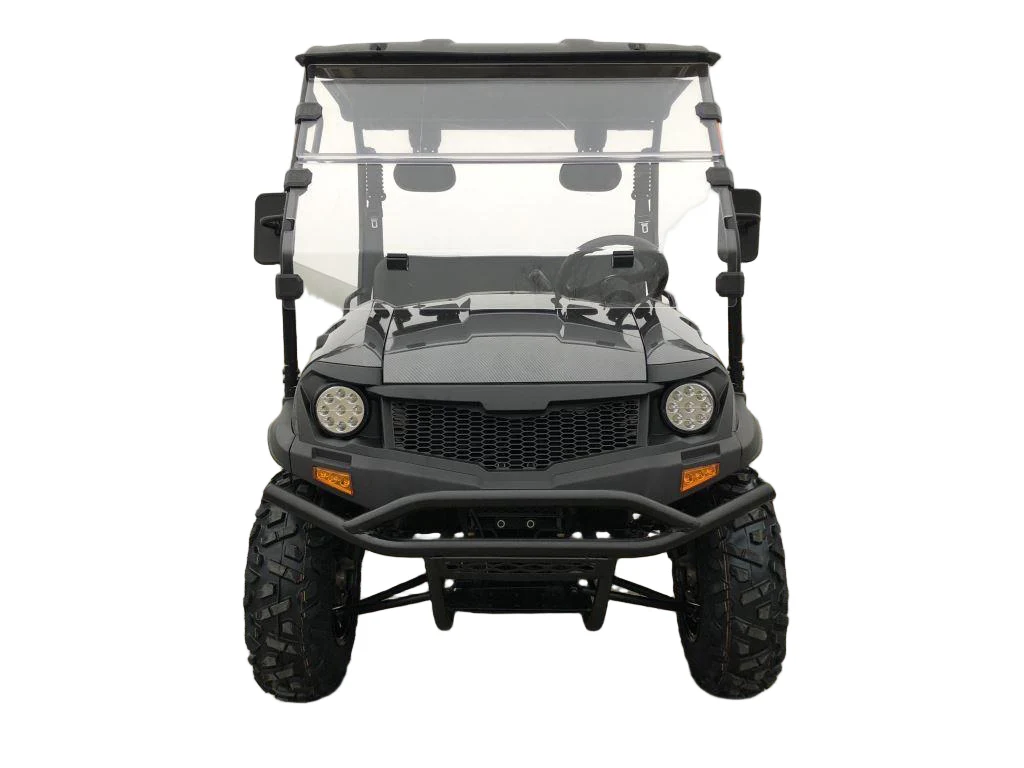

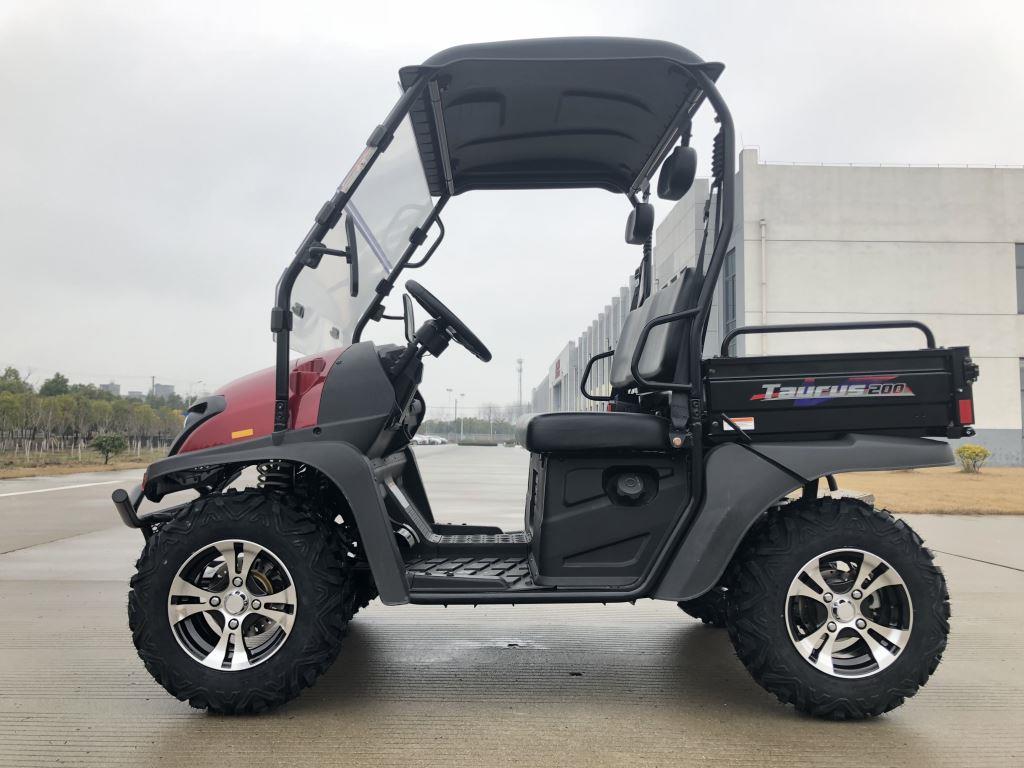

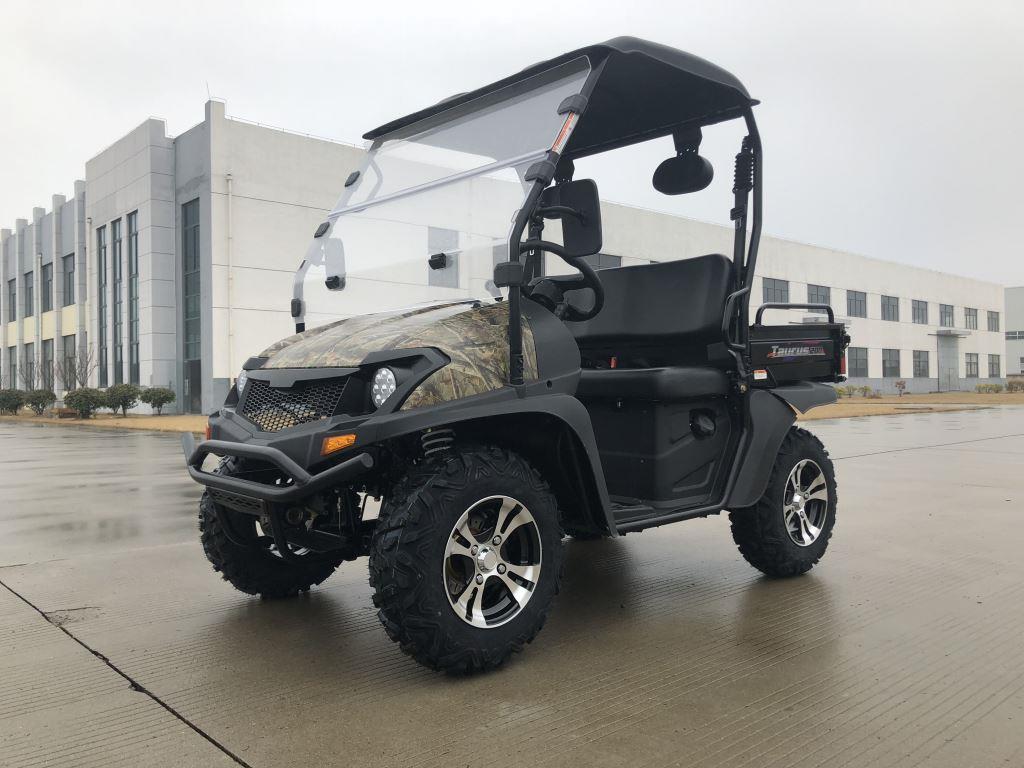

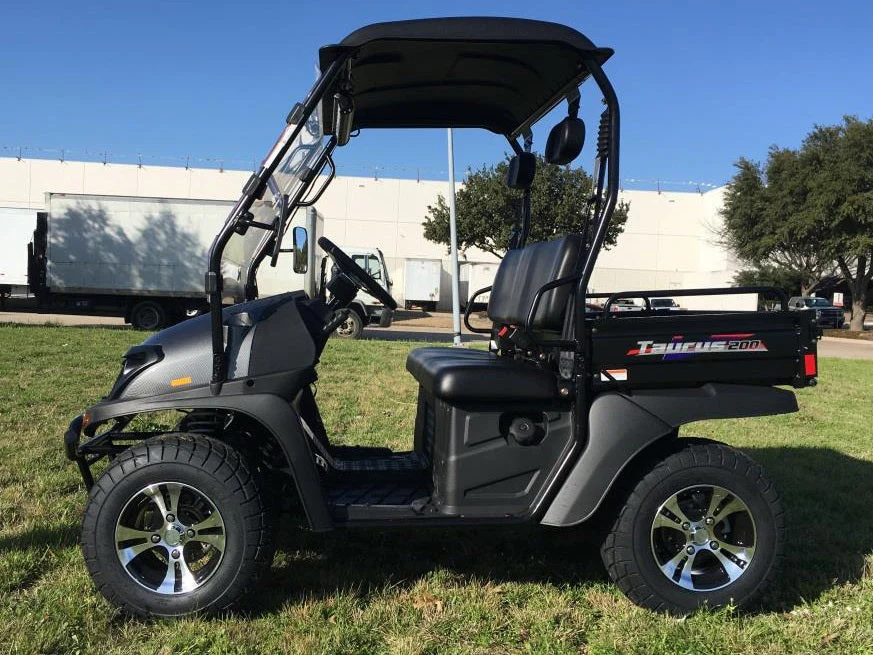

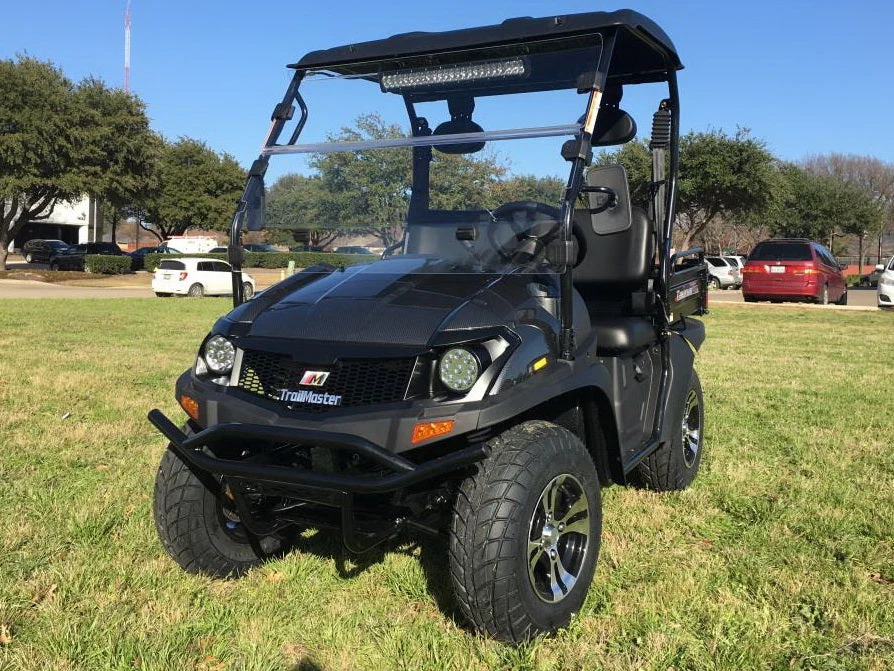

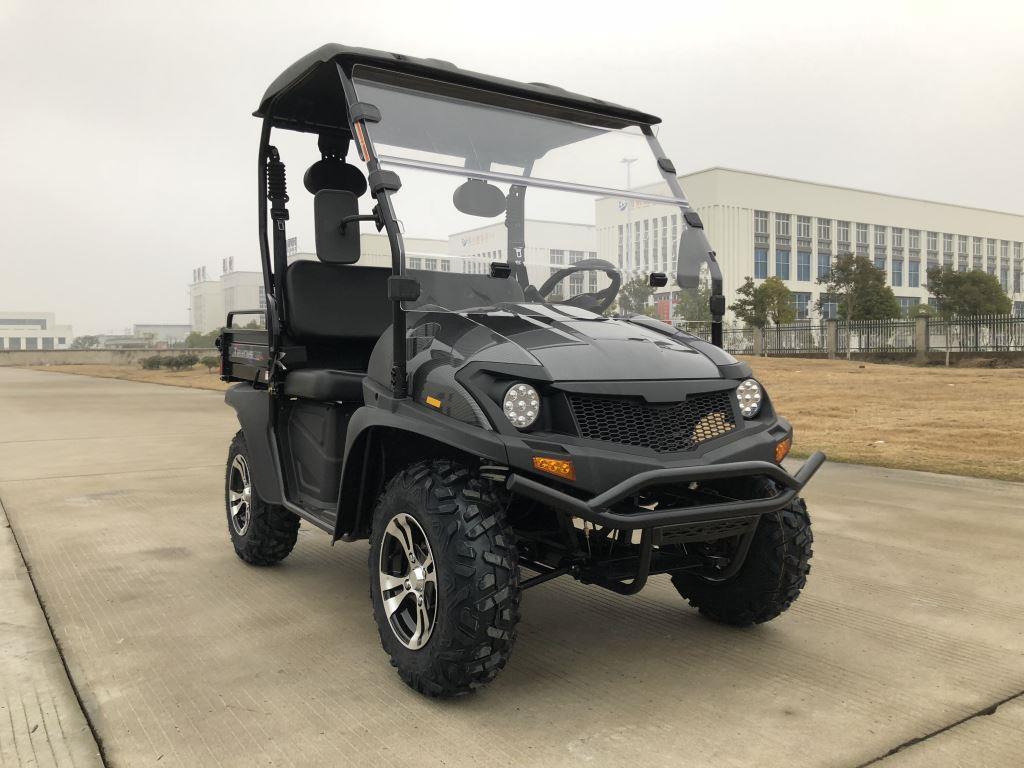

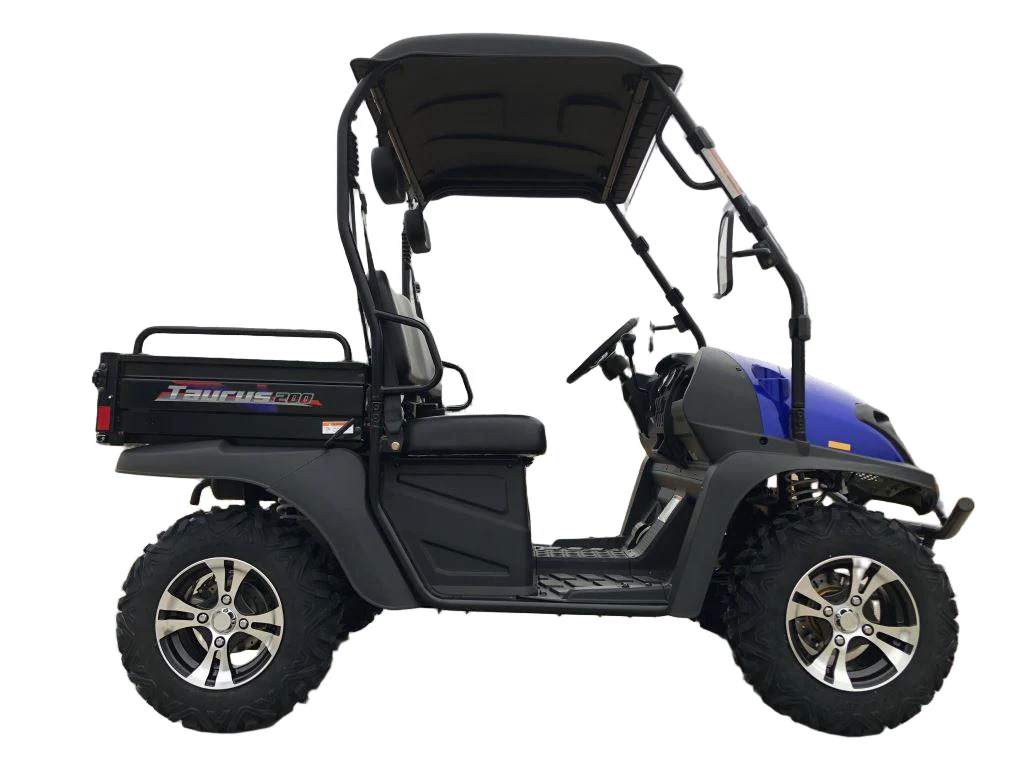

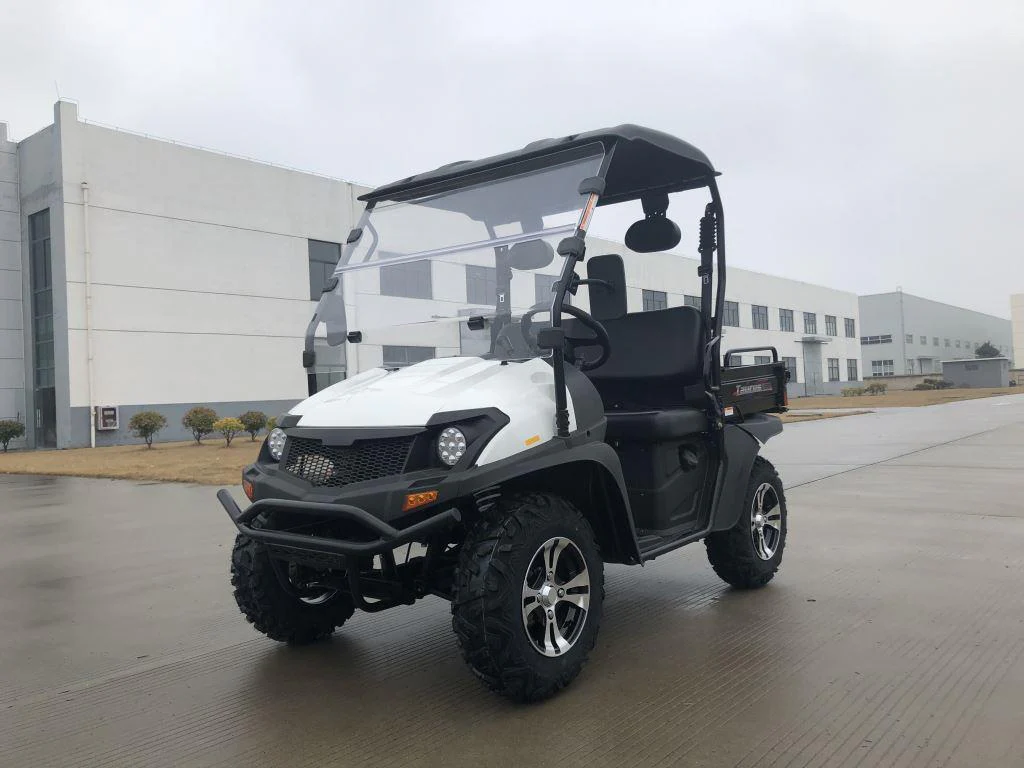

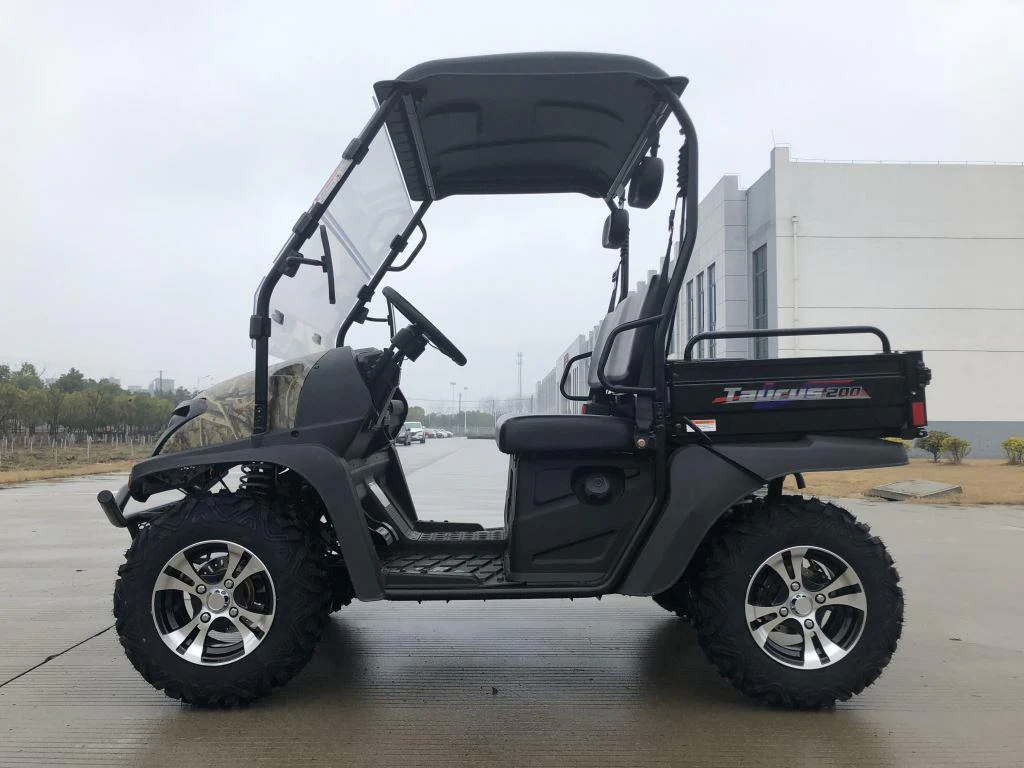

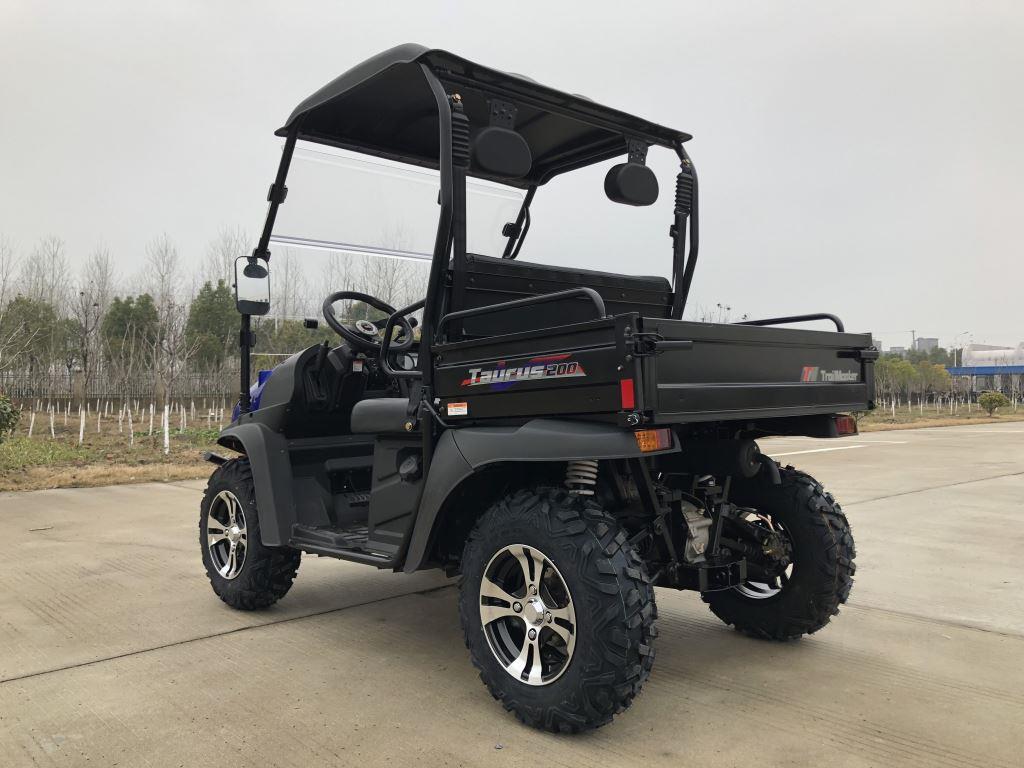

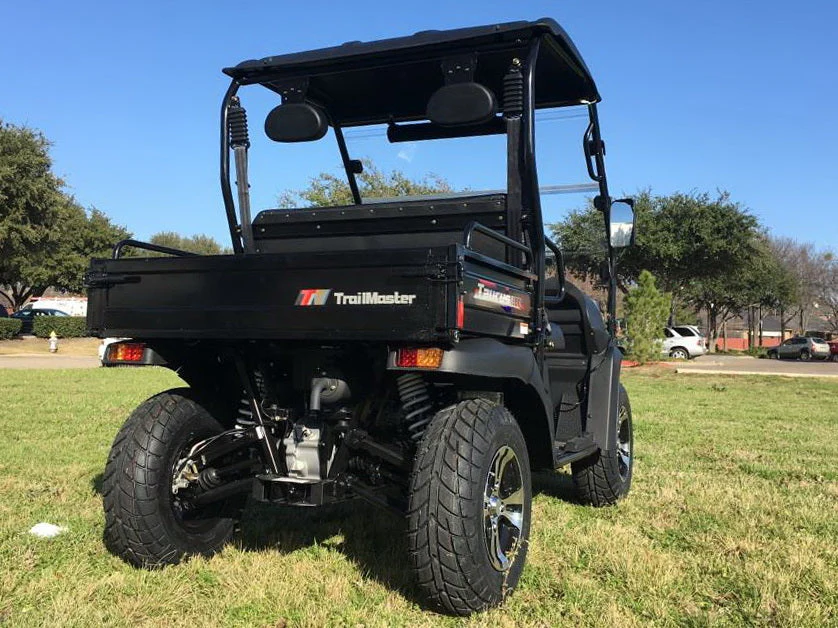

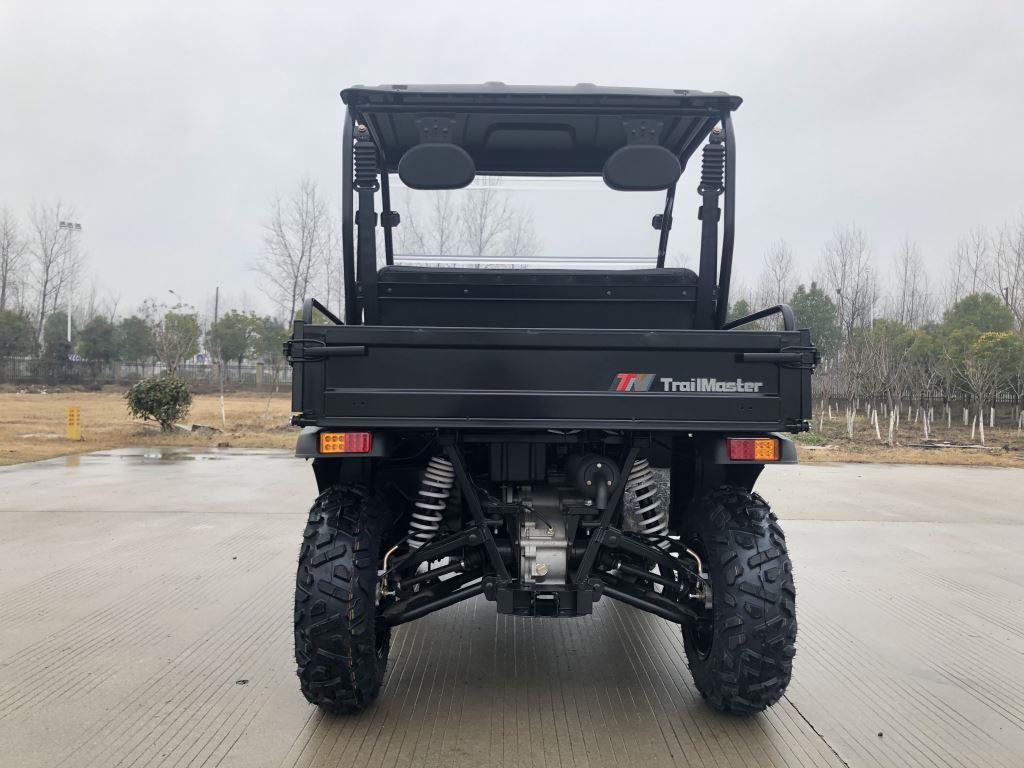

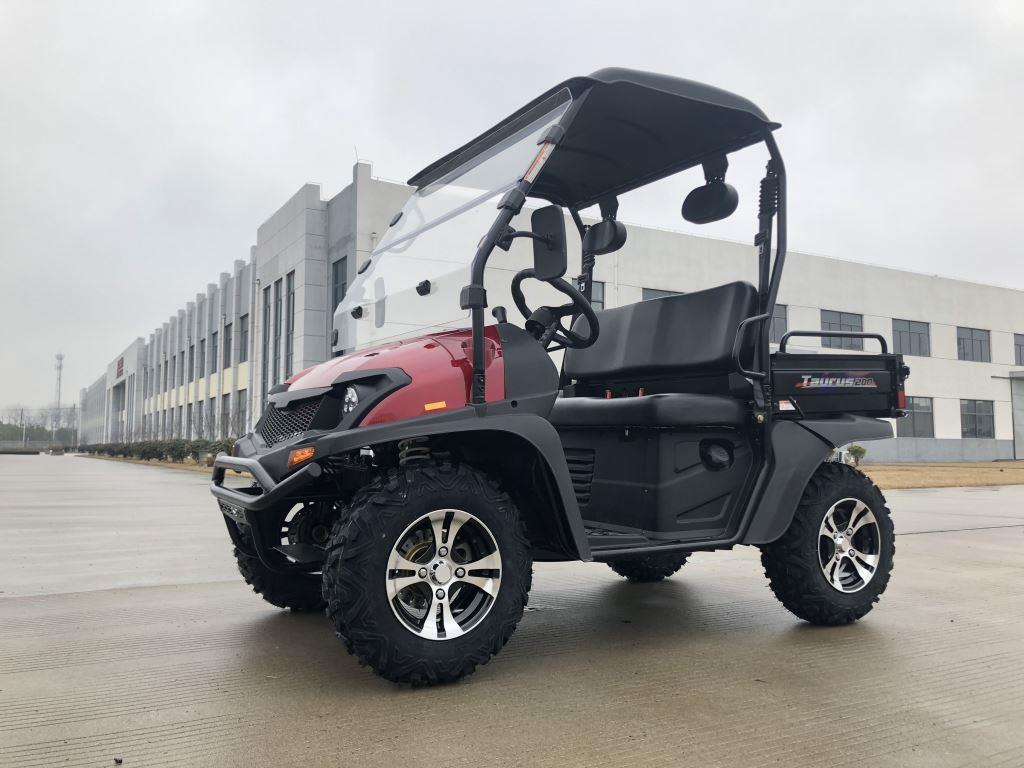

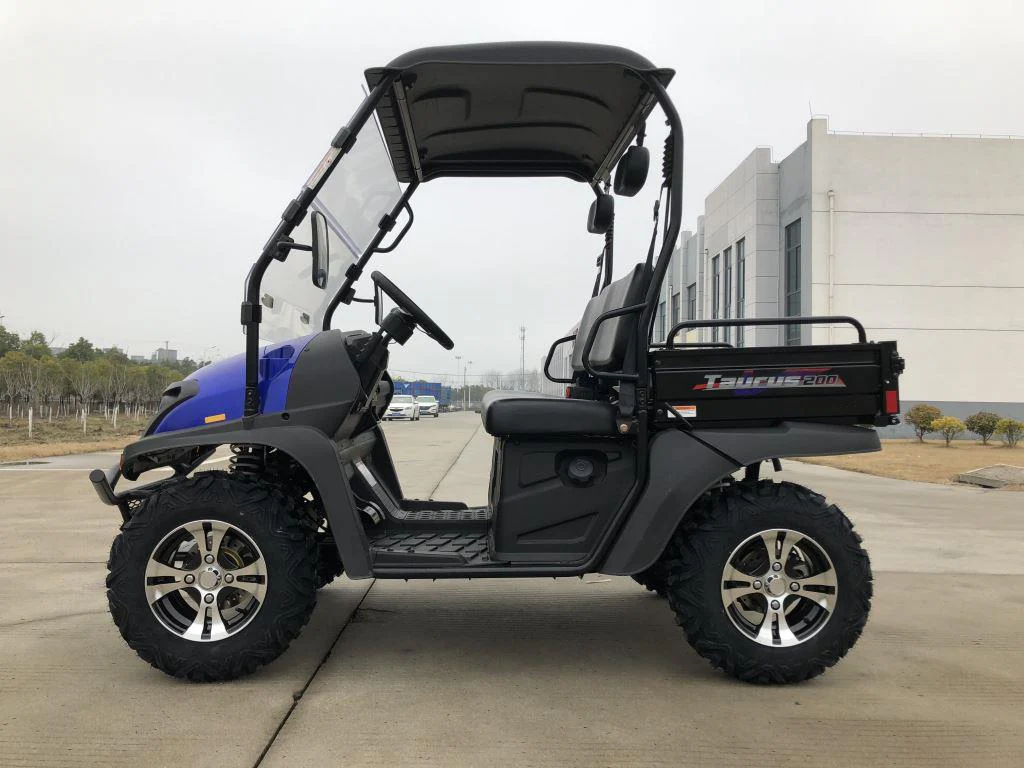

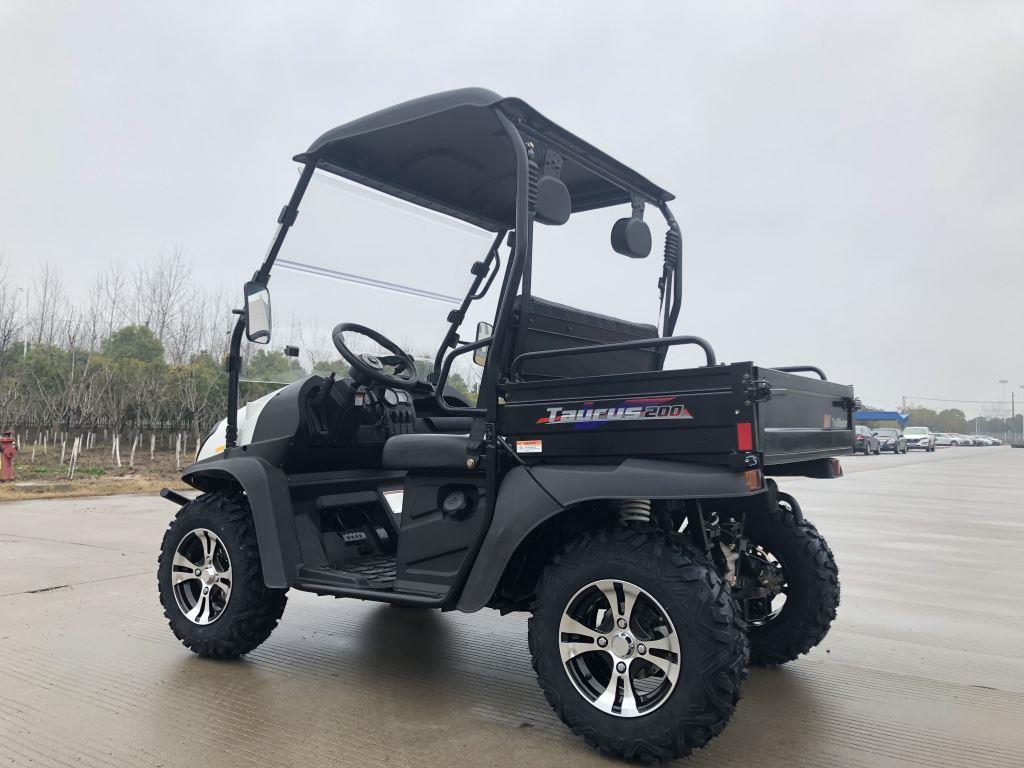

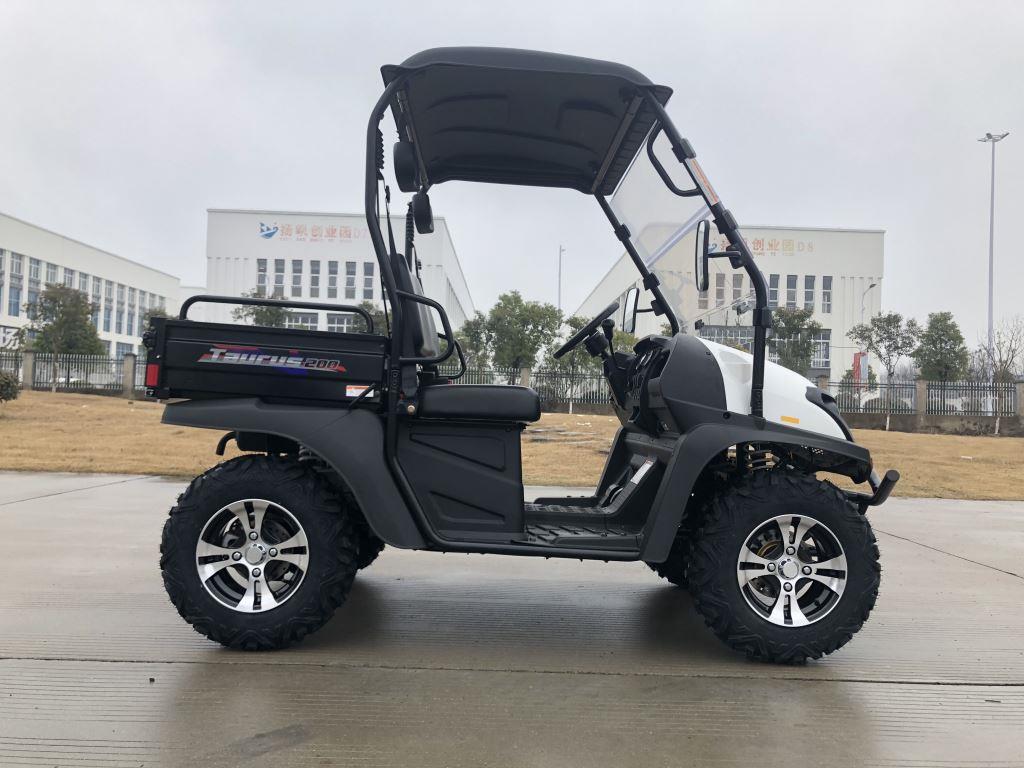

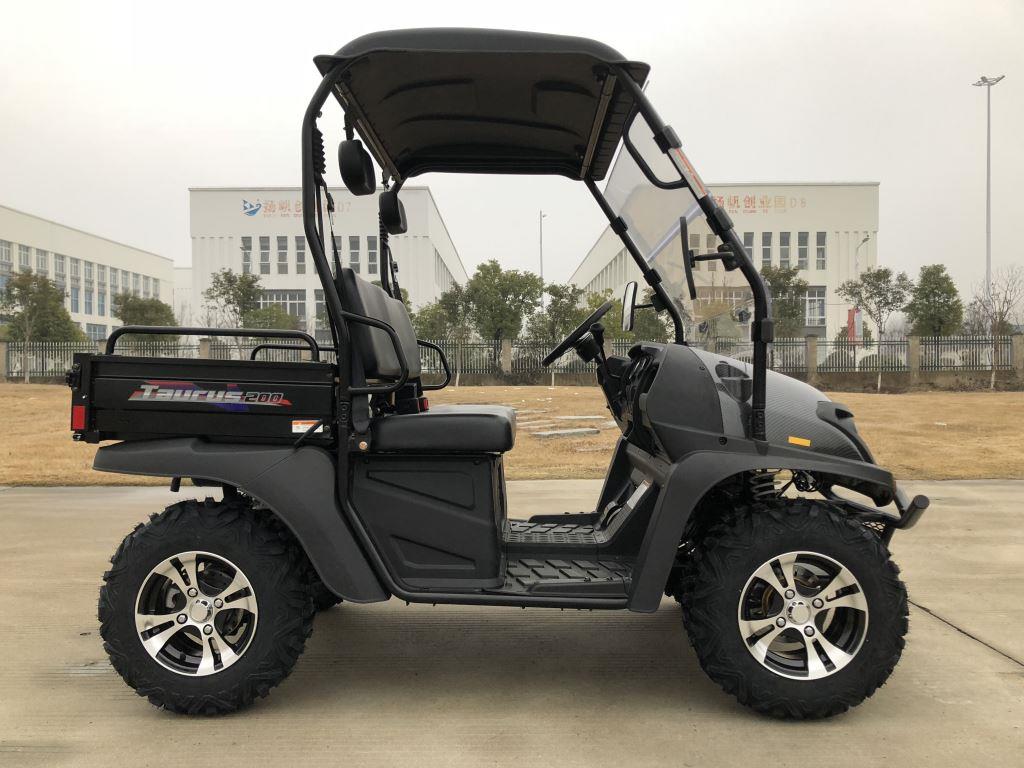

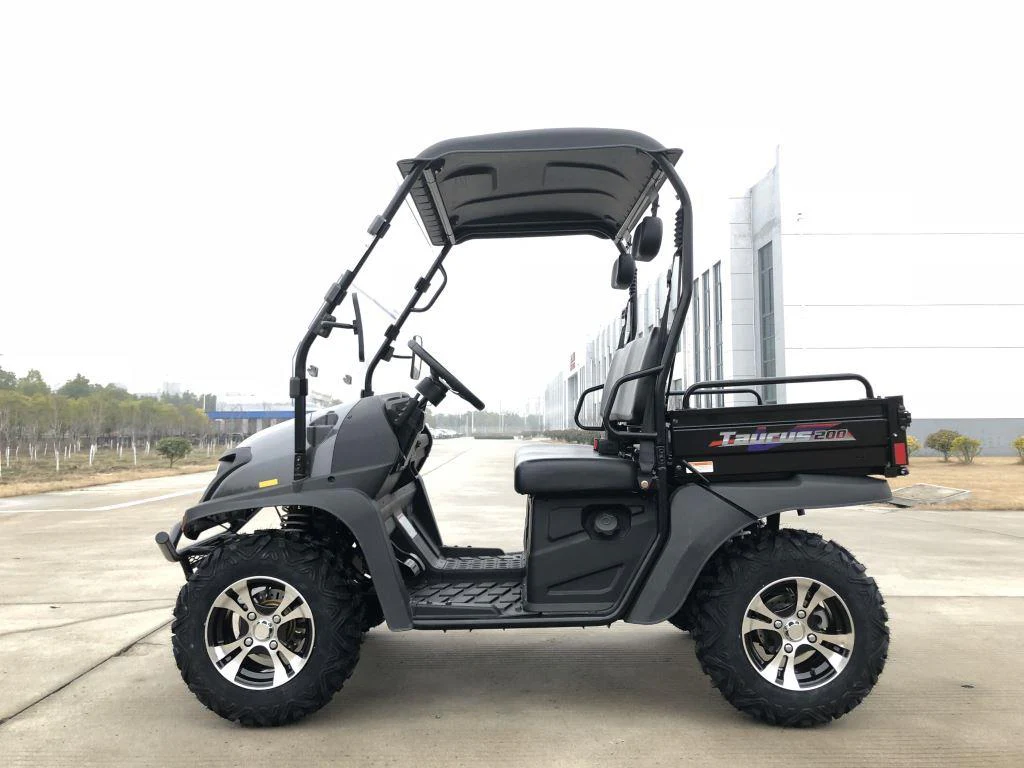

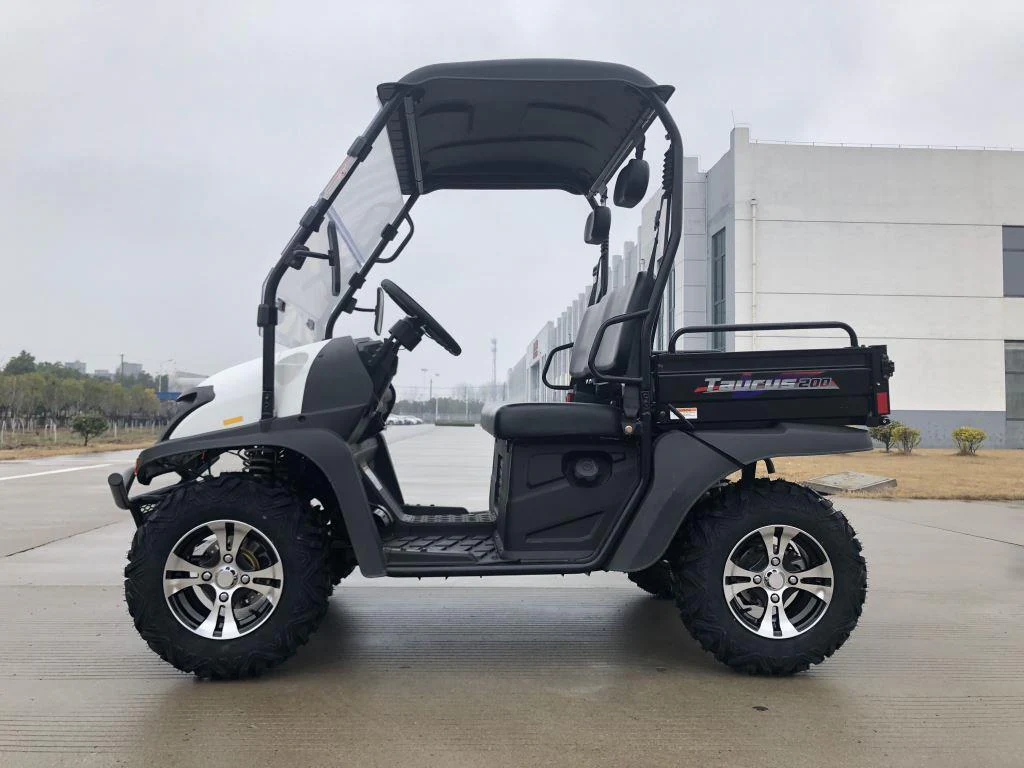

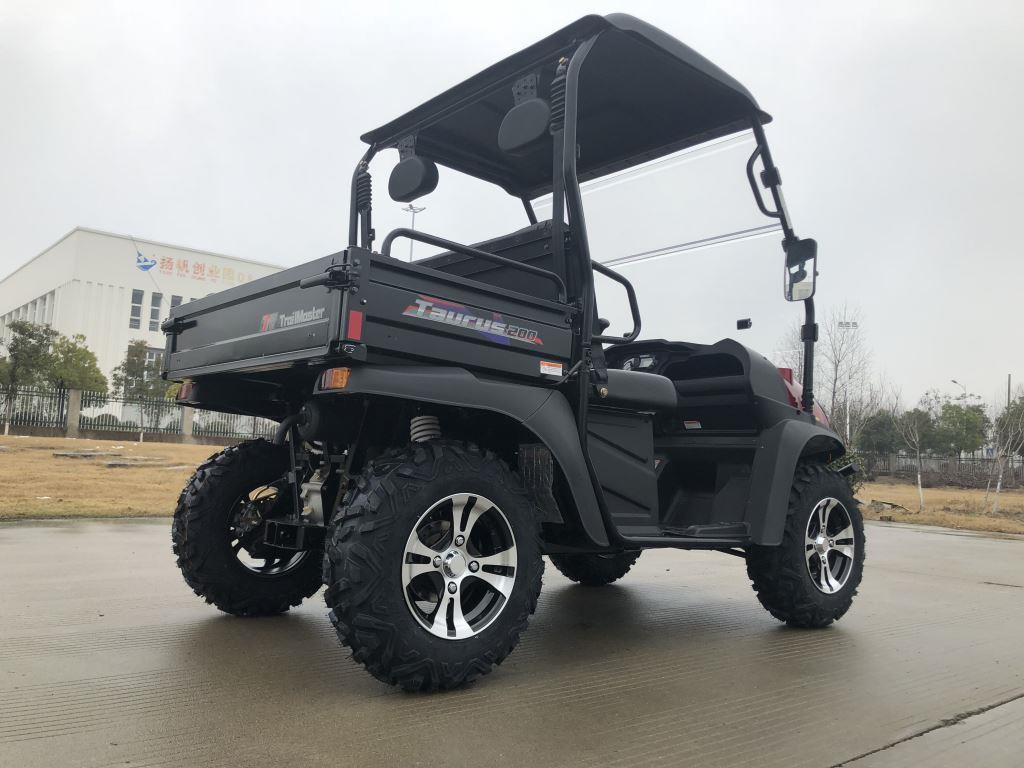

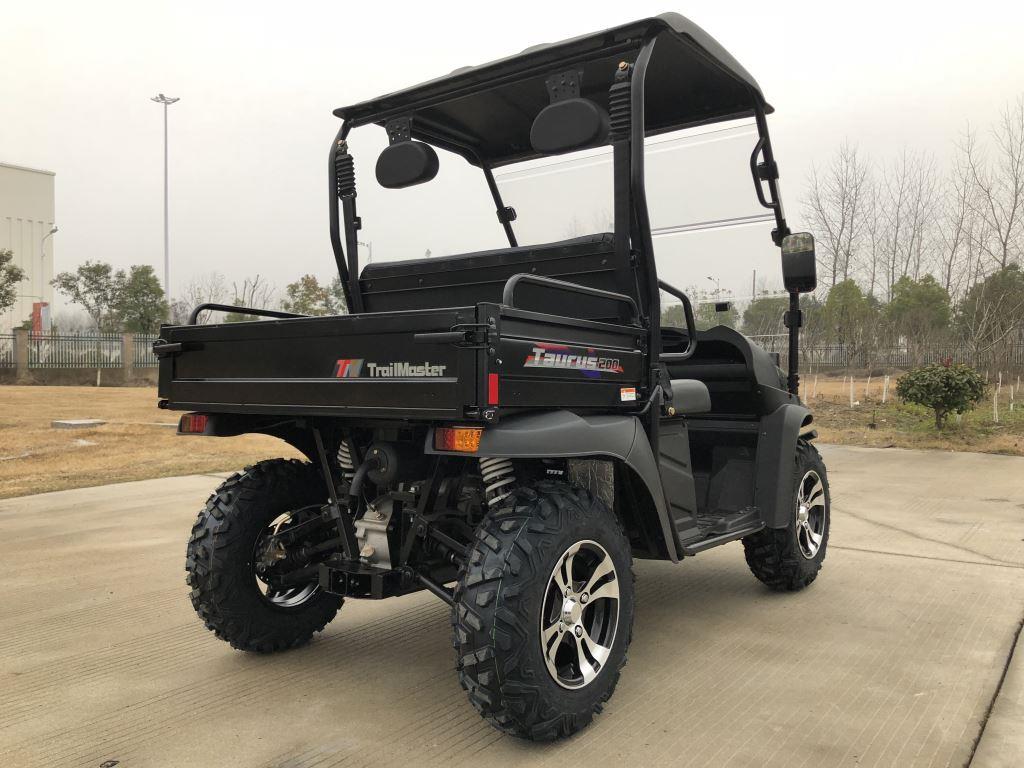

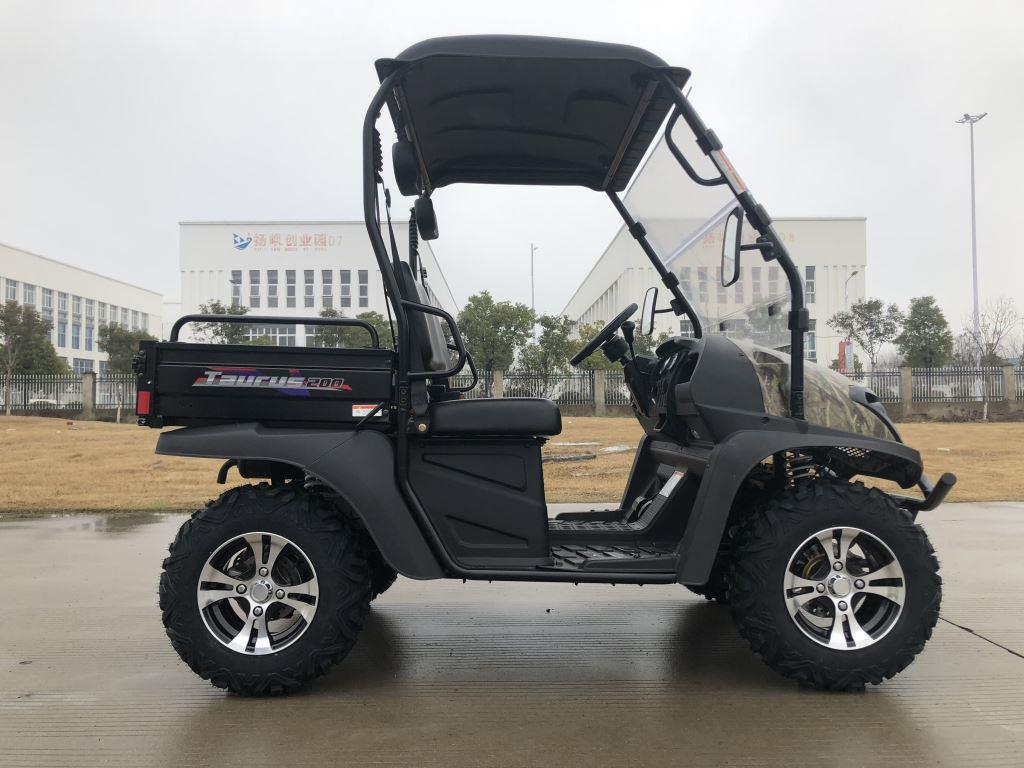

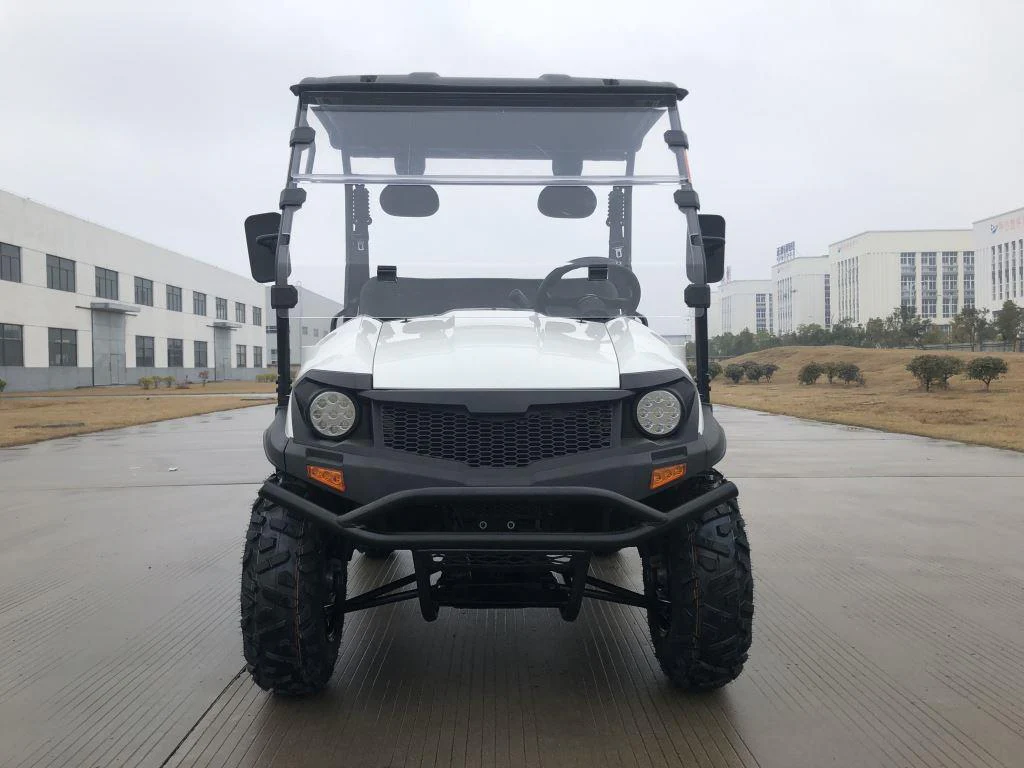

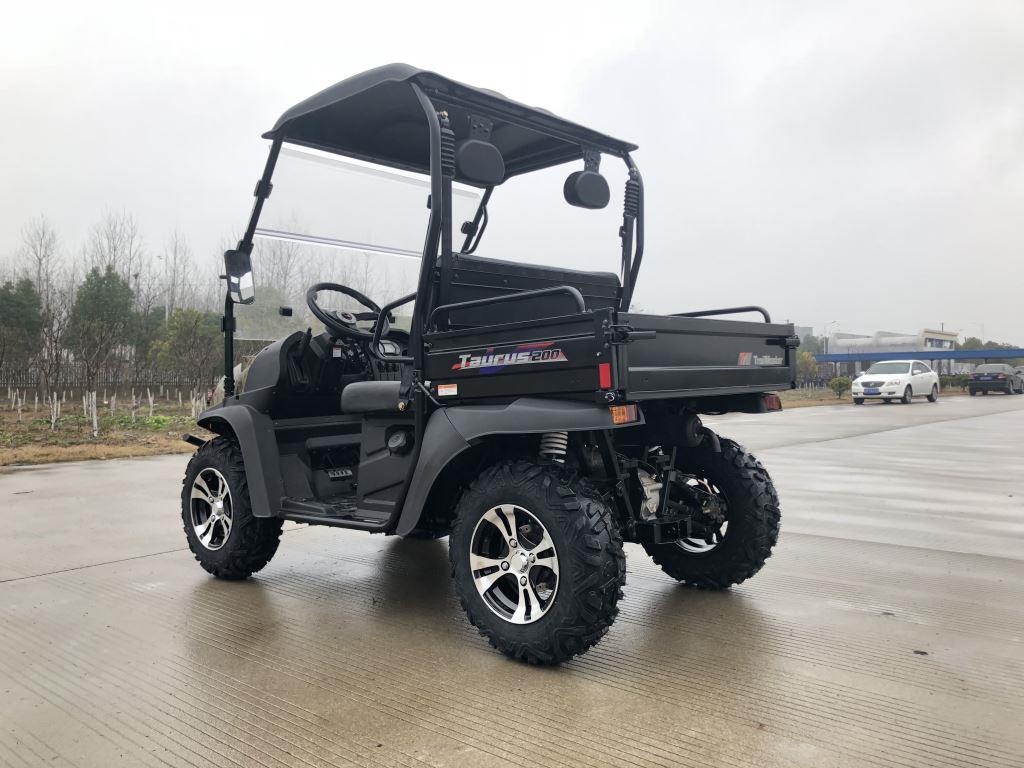

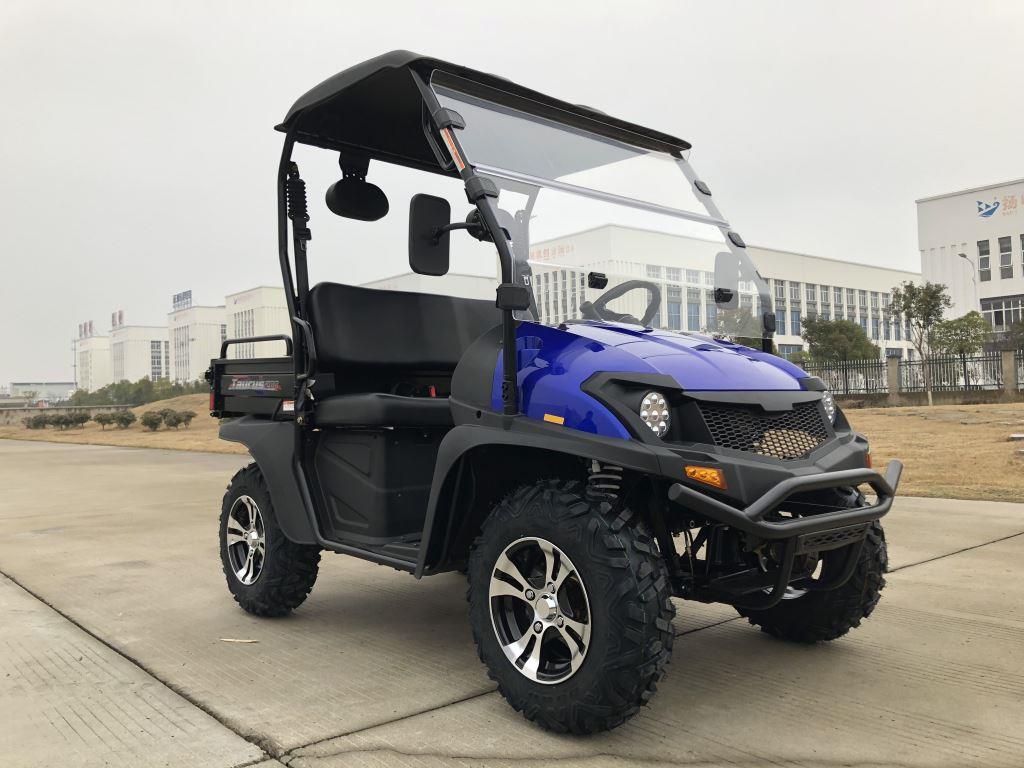

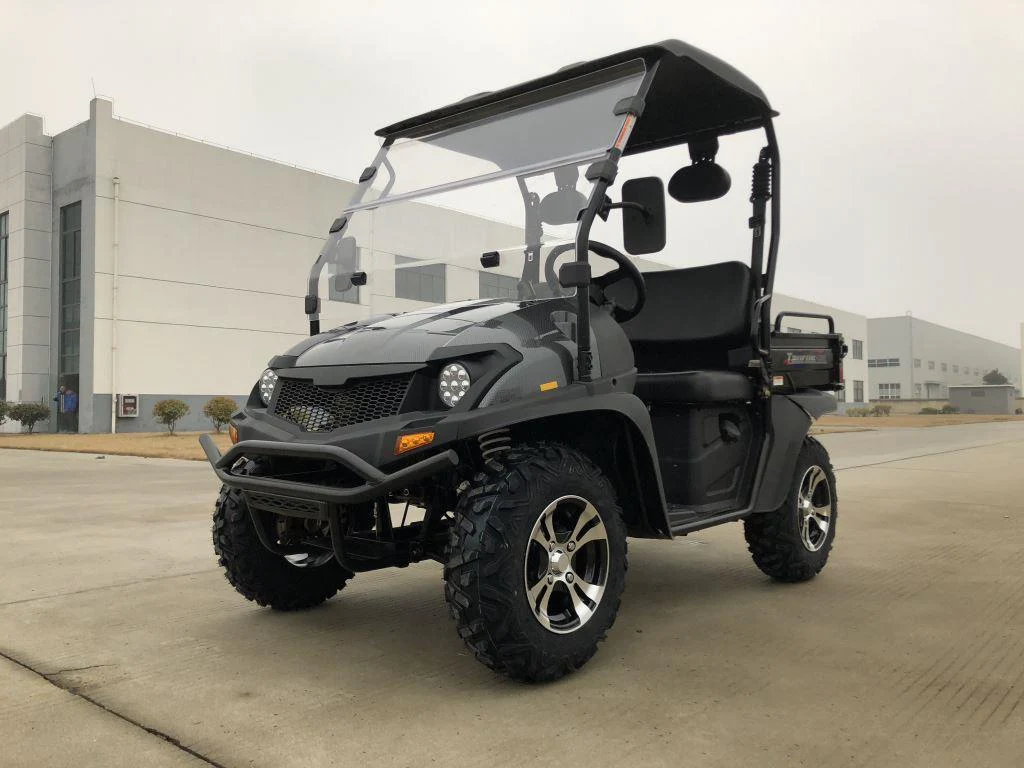

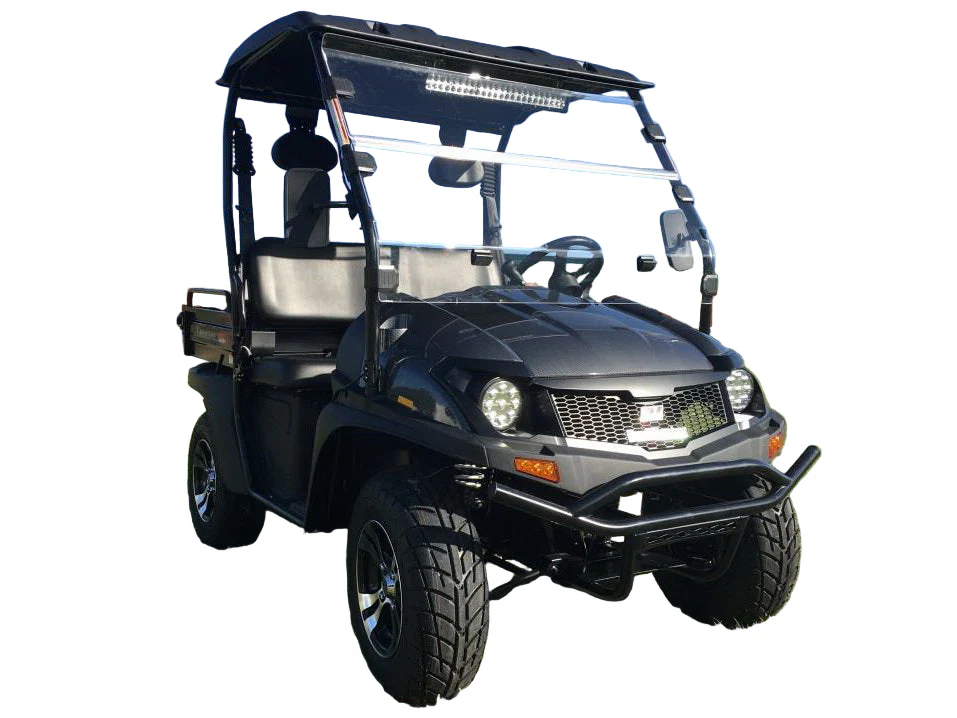

TrailMaster Taurus 200E-U EFI Gas UTV Shaft Drive, High/Low Gear Alloy Wheels, Fuel Injected

Equipped with H/L gear, low gear mode has 40% better climbing ability than the non-H/L version & can climb up to 30-degree slopes with ease.

It is perfect for a long weekend of hunting and tough jobs all week long. Four passenger model available. Available in 2-seater Dump bed model or foldable 4-seater/rear-flatbed model for only $299 more.

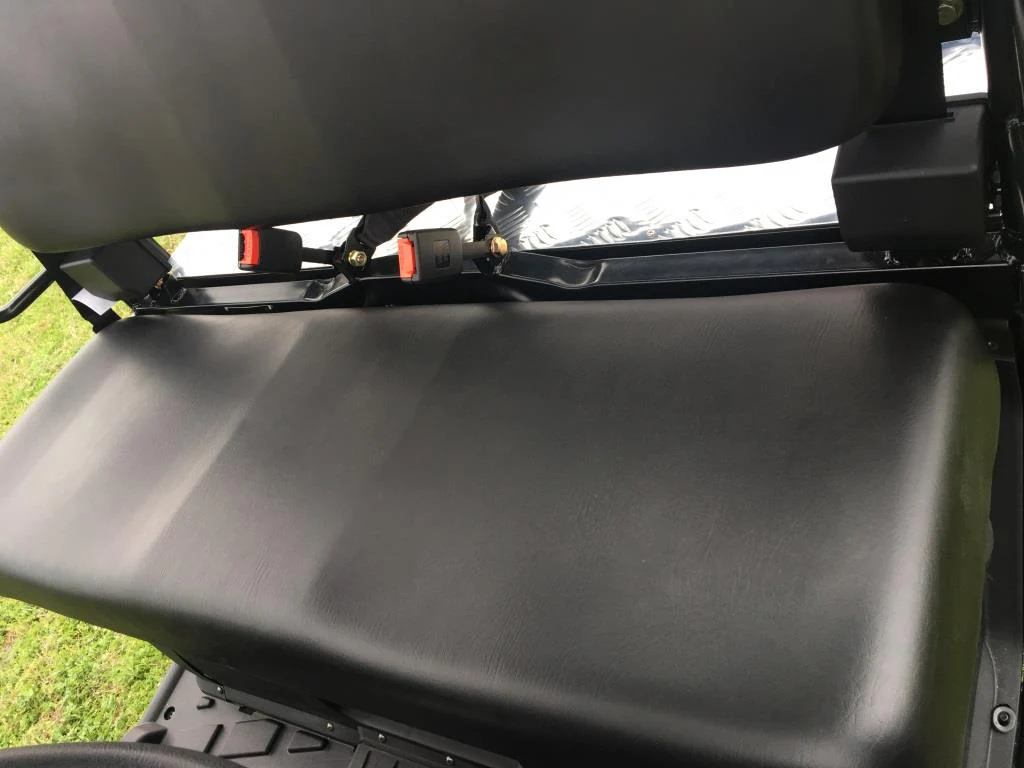

High-efficiency, 4 Stroke Overhead Cam, Air/Oil Cooled Engine Double A-Arm Fully Independent Suspension Hydraulic Assist Dump Bed on 2-Seat Model Lots of Under seat Storage

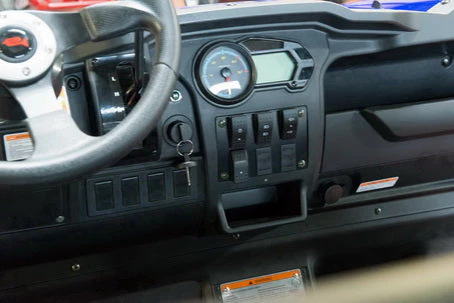

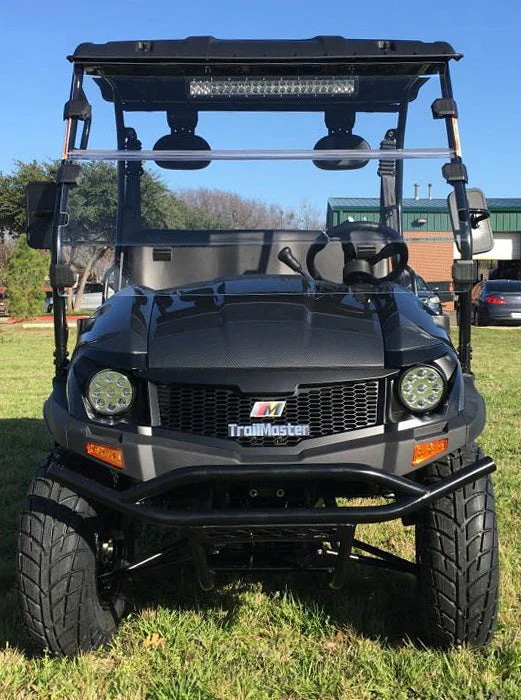

EPA approved Digital Gage Set with Speedometer and Tach Head Lights, Taillights, and Brake Lights.

Turn Signals Optional CVT Transmission High Low two speed Integral Manual Shift Gear Box for Forward Neutral and Reverse Direct Drive from gearbox to rear wheels via half shafts Live Axle Rear Wheel Drive 4 Wheel Hydraulic Disc Brakes Hand Actuated Mechanical Parking Brake McPherson Strut Front Suspension The Trail Master Taurus high-performance vehicles are trail ready and hard working with a dumping cargo box on the 2-seat model capable of light-duty hauling up to 200lbs. The powerful gas engine has plenty of power to haul and pull vehicle through the tough spots.

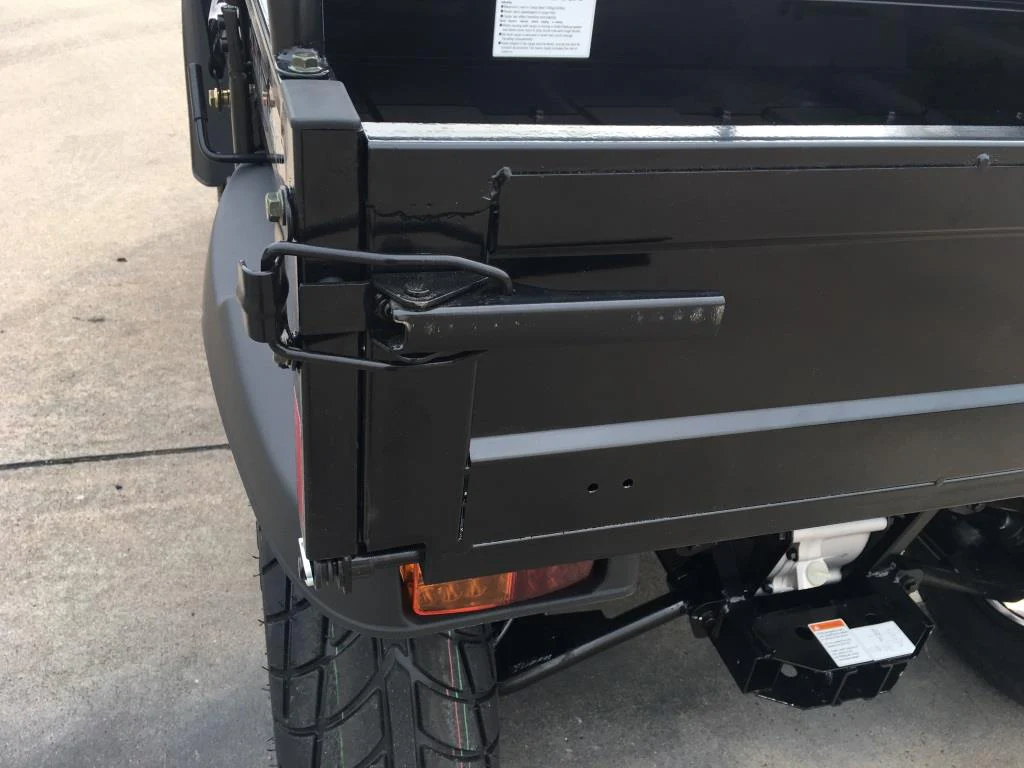

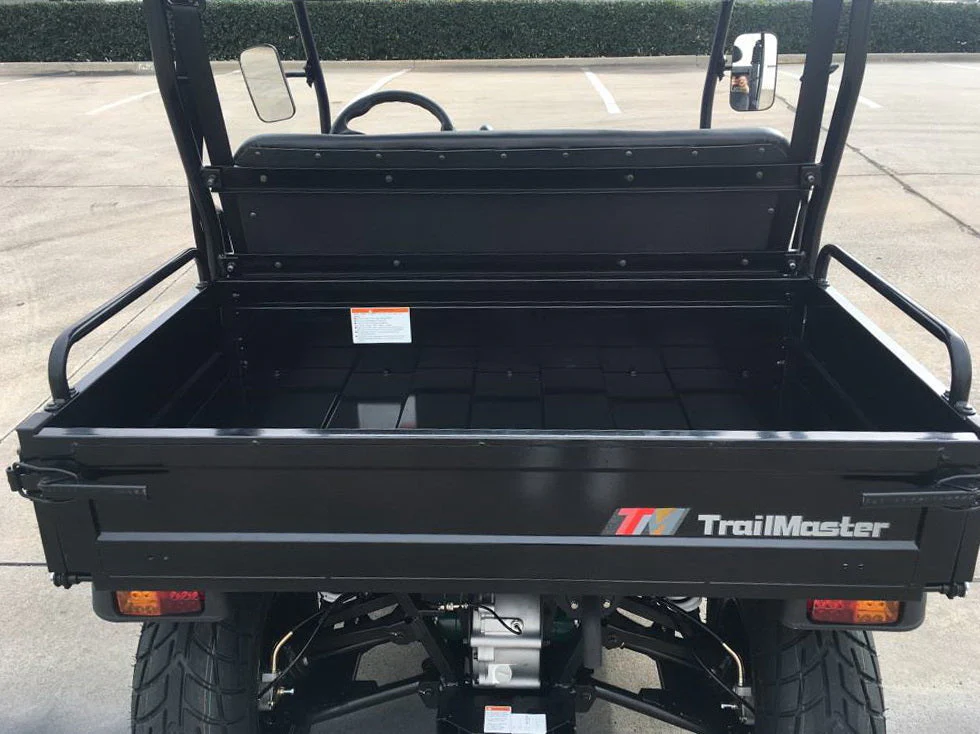

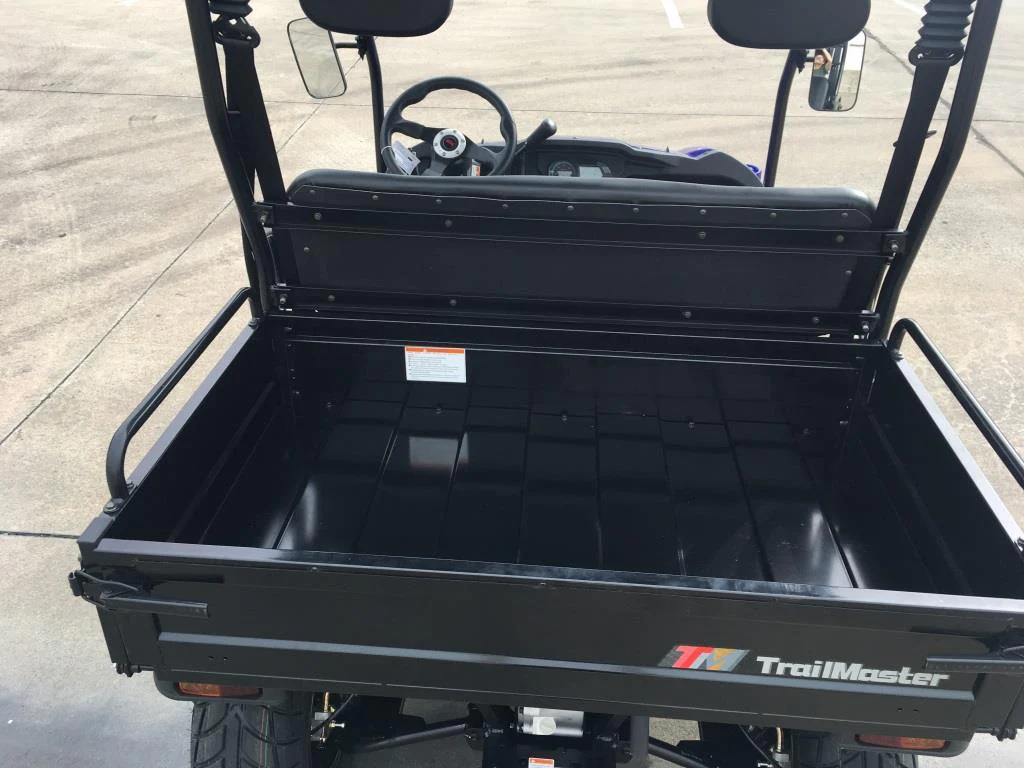

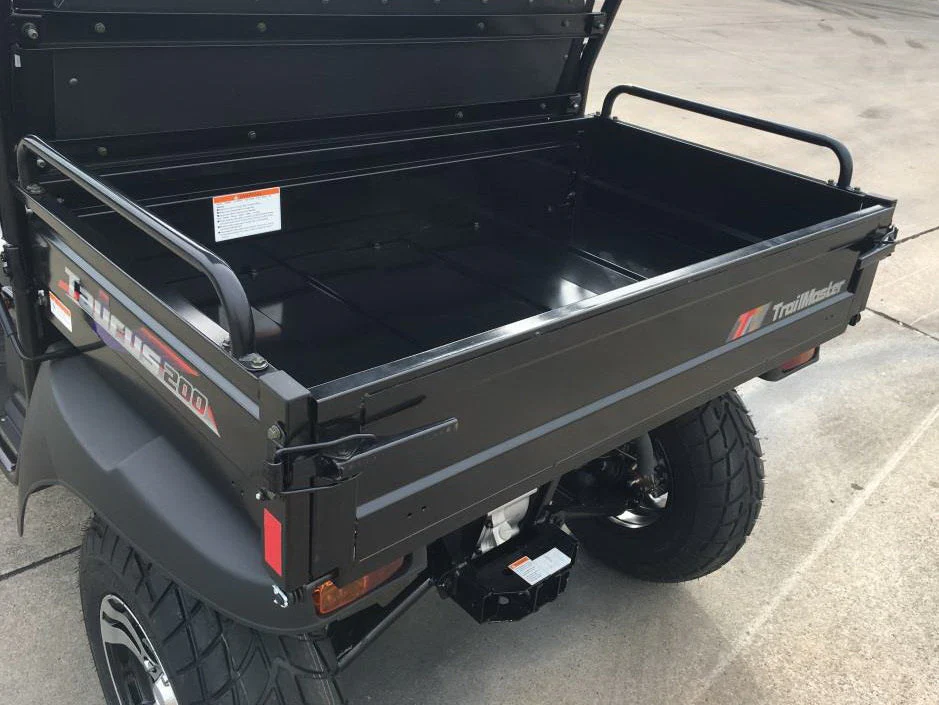

The High Low two speed CVT transmission allows the Taurus to perform in the optimum power curve getting the most out of the 177-cc gas powered engine. Easy to Load steel cargo box requires less effort to load and unload. Tilts for easier dumping. Excellent stability and handling on inclines or any type of Terrain. Whether you load it up or leave it empty, the Workman delivers a comfortable ride with its new specially tuned McPherson suspension.

Hydraulic Disk Brakes - Equipped with 4-wheel hydraulic disk brakes made for stopping with heavy loads.

Rugged Suspension - The Workman rides smoother than ever before. And this advanced McPherson suspension is specially tuned to deliver a well-cushioned ride whether you load it up or leave it empty.

The 4-stroke engine delivers excellent low-end torque power and acceleration everywhere you want to go. Stable design A low center of gravity gives excellent stability. The cargo-box load is centered over the rear wheels for balanced weight distribution.

FUEL INJECTED MOTOR Fuel injection system operates under any weather and at any altitude. With fuel injection, users don’t need to worry about starting in cold weather or at high altitudes; Furthermore, users don’t need to fix or replace carburetors after periods of inactivity with the unit.

Specifications

Engine Type	Four-Stroke, Single Cylinder
Displacement	177 cc
Bore & Stroke	62.5 × 57.8 mm
Compression Ratio	8.8
Carburetor	EFI
Ignition	CDI
Transmission	Automatic H-L-N-R
Drive Train	Shaft Drive
Cooling	air cooling
Horse Power	8.7 HP (6.5kw)
Fuel Tank Capacity	4.8 gallons
Battery	12V 9Ah
Dimension	Overall Length 92.5 in. / Overall Width 54.3 in. / Overall Height 73.6 in.
Seat Height	18.5 in.
Ground Clearance	13 in.

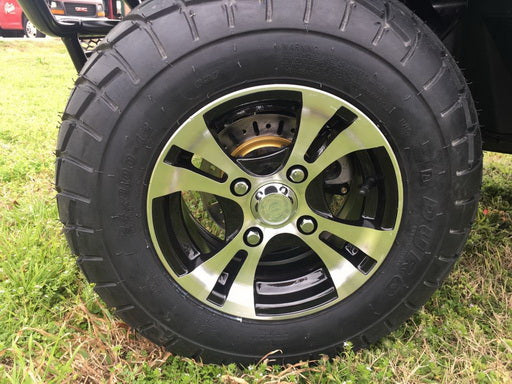

Front Tire	24×8-12
Rear Tire	24×8-12
Wheelbase	63.8 in.
Dry Weigh	828 lbs
Dump Bed Capacity	220 lbs
Dump Bed Dimension	26.4 in.
Towing Capacity	220 lbs
Suspension

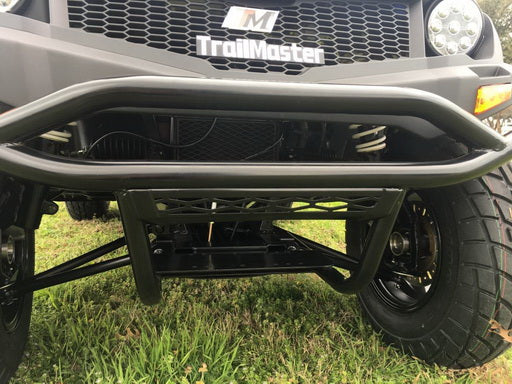

Front Suspension	Independent Mcpherson

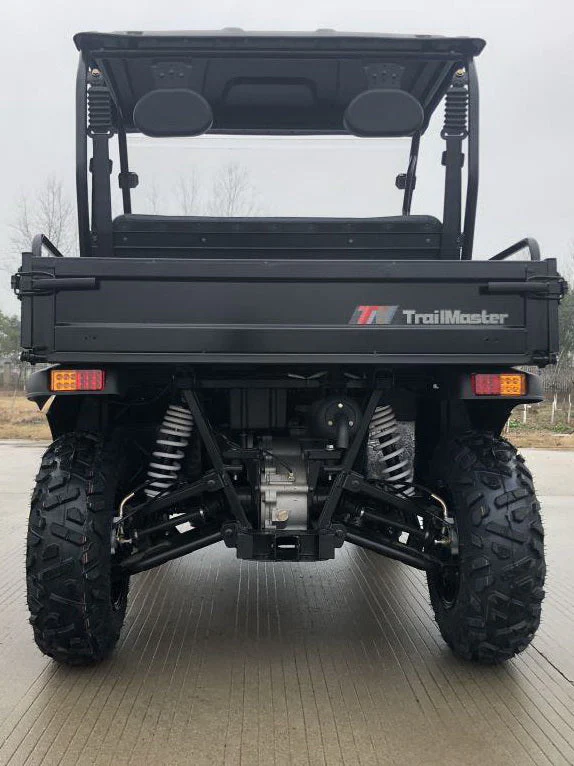

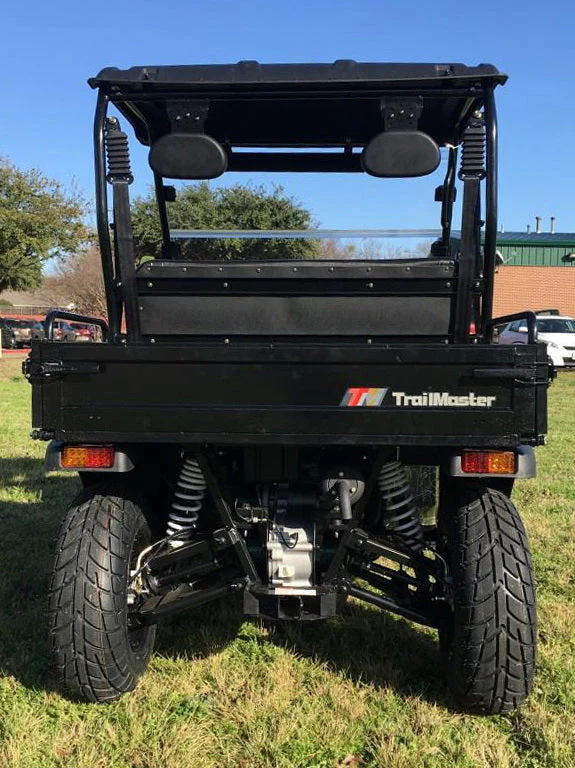

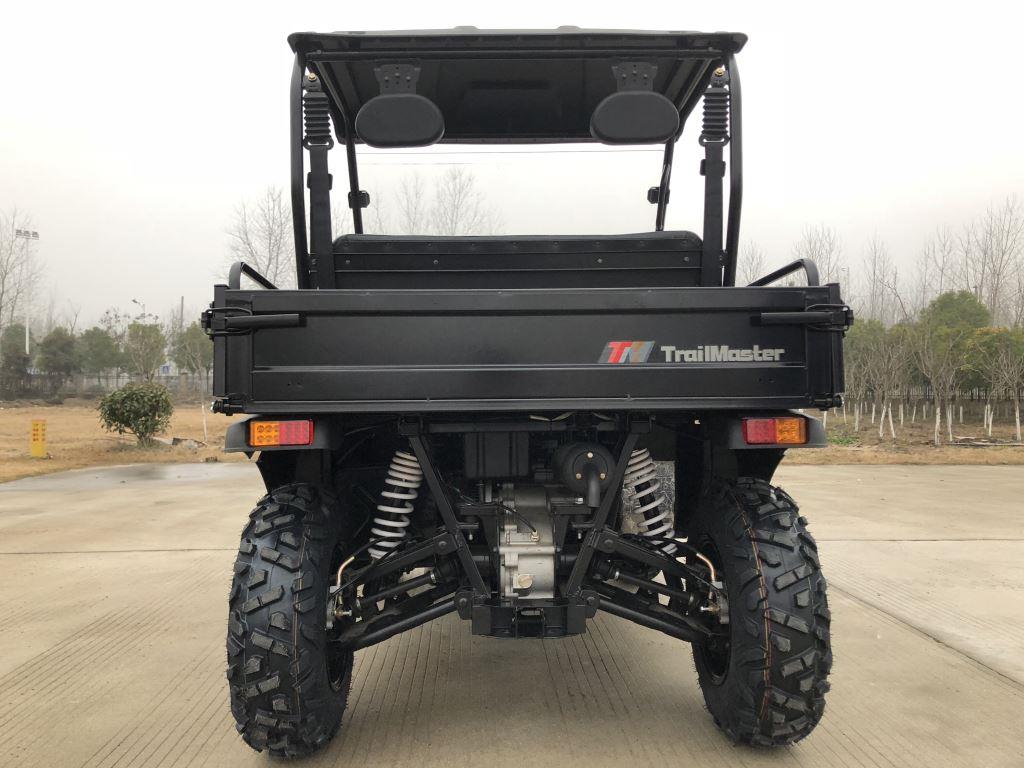

Rear Suspension	Independent Double A-Arm
Brake
Front Brake	Ventilated Hydraulic Disc
Rear Brake	Ventilated Hydraulic Disc
Key features	Fuel injection system
